SELECT A DIAGRAM

01 - Cover Sheet

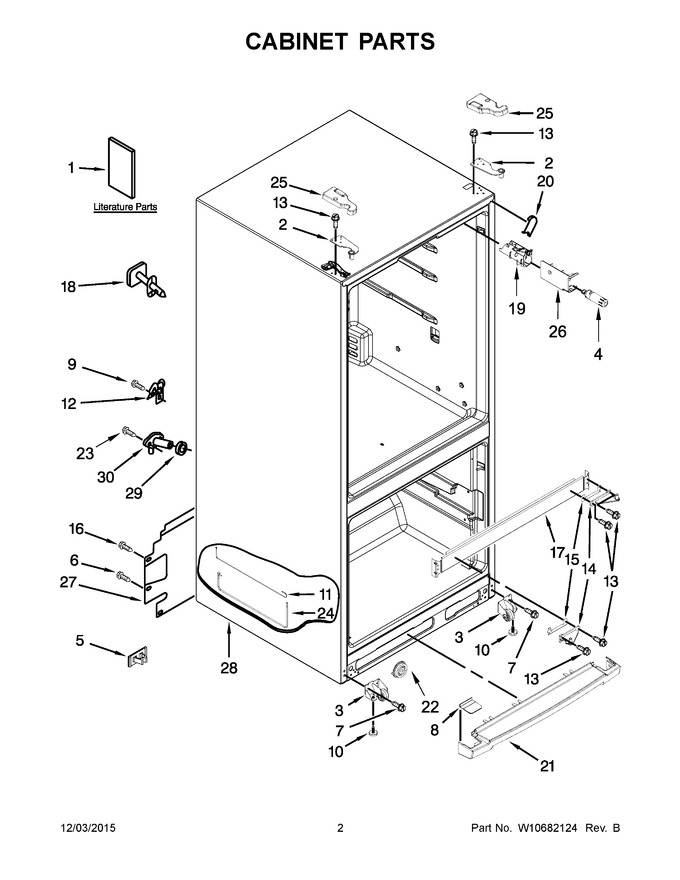

02 - Cabinet Parts


03 - Liner Parts


04 - Freezer Door Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Icemaker Parts


07 - Shelf Parts


08 - Dispenser Parts


08 - Shelf Parts


09 - Dispenser Parts


09 - Icemaker Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2225623		Icemaker Service Sheet		Appelez-nous	-
1	W10596094		Service & Wiring Sheet		Appelez-nous	-
1	W10458271		Energy Guide		Appelez-nous	-
1	W10405120		Use And Care Guide		Appelez-nous	-
2	W11573371		Hinge, Top (right Hand)   (Replaces: W10546299)			Immediately	$ 22.38
2	W10546298		Hinge, Top (left Hand)				$ 63.14
3	WPW10359256		Roller, Front (left Hand)   (Replaces: W10359256)			Immediately	$ 46.65
3	WPW10359255		Roller, Front (right Hand)   (Replaces: W10359255)			Immediately	$ 90.58
4	W10569758		Filter, Water				$ 0.03
5	W11501419		Clamp, Tube   (Replaces: W10352217)			Immediately	$ 10.89
6	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 76.88
8	W10353930		Cover, Toe Grille (black)				$ 76.81
8	WPW10353932		Cover, Toe Grille (grey)   (Replaces: W10353932)				$ 76.95
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
10	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
11	WPW10449619		Tube, Filter Inlet   (Replaces: W10449619)			Immediately	$ 121.14
12	549193		Clamp, Power Cord				$ 12.65
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
14	WPW10521409		Hinge, Center (right Hand)   (Replaces: W10521409)			Immediately	$ 34.40
14	WPW10521411		Hinge, Center (left Hand)   (Replaces: W10521411)			Immediately	$ 69.74
15	WPW10450363		Shim, Center Hinge   (Replaces: W10450363)			Immediately	$ 22.81
16	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
17	N/P		Rail, Center (not Serviced)		Appelez-nous	-
18	N/P		Fitting, Water Tube (not Serviced)		Appelez-nous	-
19	W10844267		Housing, Water Filter   (Replaces: W10346257)			Immediately	$ 133.02
20	WPW10283959		Filler, Corner (white)   (Replaces: W10283959)				$ 7.39
20	W11252732		Filler, Corner (black)   (Replaces: W10283960)				$ 11.76
20	W10851579		Filler, Corner (grey)   (Replaces: W10283961)			Immediately	$ 6.80
21	WPW10300127		Grille (white)   (Replaces: W10300127)				$ 145.34
21	WPW10353935		Grille (grey)   (Replaces: W10353935)			Immediately	$ 146.81
21	WPW10353933		Grille (black)   (Replaces: W10353933)				$ 146.52
22	W10331226		Drum, Toe Grille				$ 42.68
23	WP488163		Screw   (Replaces: 488208)				$ 7.13
24	W10801011		Tube, Filter Outlet   (Replaces: W10449617)			Immediately	$ 161.72
25	W10465768		Cover, Hinge (left Hand (grey))				$ 18.48
25	W10465765		Cover, Hinge (left Hand (white))				$ 18.51
25	W10465764		Cover, Hinge (right Hand (white))				$ 19.36
25	W10465771		Cover, Hinge (left Hand (black))				$ 17.78
25	W10465770		Cover, Hinge (right Hand (black))				$ 20.49
25	W10465767		Cover, Hinge (right Hand (grey))			Immediately	$ 19.31
26	WPW10306392		Cover, Water Filter   (Replaces: W10306392)				$ 95.45
27	W10636716		Cover, Unit   (Replaces: W10444800)				$ 94.74
28	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
29	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
30	WPW10601149		Fitting, Water Tube   (Replaces: W10601149)			Immediately	$ 7.70
31	WP488163		Screw   (Replaces: 488208)				$ 7.13
32	WPW10463317		Tube, Cabinet Water   (Replaces: W10463317)				$ 121.20
14A	WPW10521409		Hinge, Center (right Hand)   (Replaces: W10521409)			Immediately	$ 34.40
1A	W10458271		Energy Guide		Appelez-nous	-
1B	W10405120		Use And Care Guide		Appelez-nous	-
1C	2225623		Icemaker Service Sheet		Appelez-nous	-
20A	W11252732		Filler, Corner (black)   (Replaces: W10283960)				$ 11.76
20B	W10851579		Filler, Corner (grey)   (Replaces: W10283961)			Immediately	$ 6.80
21A	WPW10353933		Grille (black)   (Replaces: W10353933)				$ 146.52
21B	WPW10353935		Grille (grey)   (Replaces: W10353935)			Immediately	$ 146.81
25A	W10465764		Cover, Hinge (right Hand (white))				$ 19.36
25B	W10465771		Cover, Hinge (left Hand (black))				$ 17.78
25C	W10465770		Cover, Hinge (right Hand (black))				$ 20.49
25D	W10465768		Cover, Hinge (left Hand (grey))				$ 18.48
25E	W10465767		Cover, Hinge (right Hand (grey))			Immediately	$ 19.31
2A	W11573371		Hinge, Top (right Hand)   (Replaces: W10546299)			Immediately	$ 22.38
3A	WPW10359255		Roller, Front (right Hand)   (Replaces: W10359255)			Immediately	$ 90.58
8A	W10353930		Cover, Toe Grille (black)				$ 76.81
8B	WPW10353932		Cover, Toe Grille (grey)   (Replaces: W10353932)				$ 76.95

    View Diagram in Separate Window       Print Part List
