01 - Cover Sheet

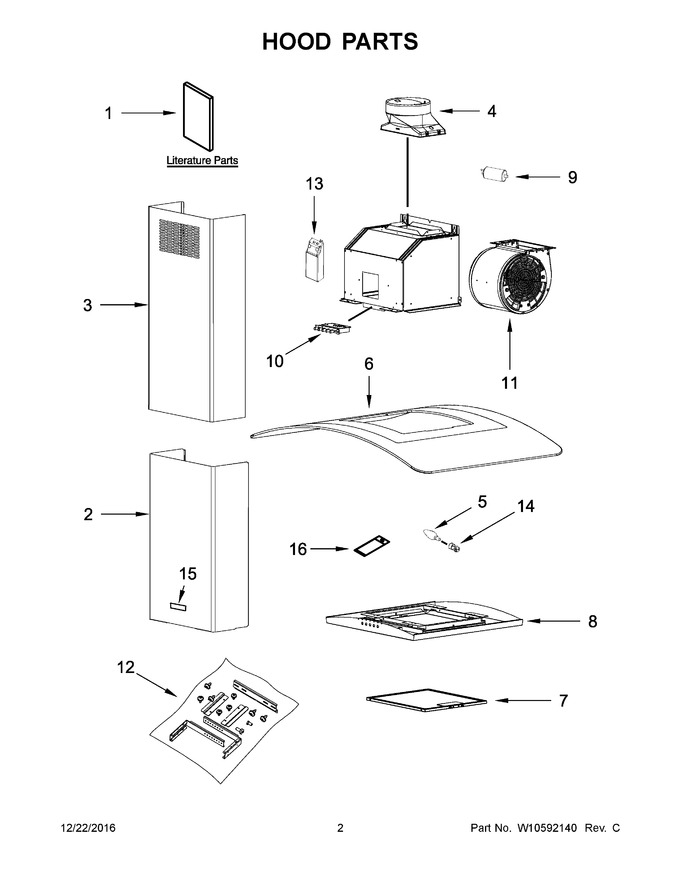

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292167		Use & Care Guide		Appelez-nous	-
2	W11590865		Chimney, Lower   (Replaces: W10313839)				$ 350.33
3	W11590865		Chimney, Upper   (Replaces: W10313840)				$ 350.33
4	W10847841		Damper, Hood (plastic)   (Replaces: W10592040)				$ 140.43
5	WP8190806		Bulb, Light   (Replaces: W10313842)				$ 70.76
6	WPW10313843		Glass (30" Model Only)   (Replaces: W10313843)			Immediately	$ 304.98
7	W10169961A		Filter, Grease   (Replaces: W10169961)			Immediately	$ 37.65
8	W10314427		Assembly, Grease		Appelez-nous	-
9	W10256657		Capacitor			Immediately	$ 84.93
10	WPW10313838		Control, Motor   (Replaces: W10313838)				$ 212.84
11	WPW10291577		Assembly, Fan   (Replaces: W10291577)				$ 485.51
12	WPW10576677		Hardware, Installation   (Replaces: W10576677)				$ 172.78
13	W11186486		Transformer (110-127v,20-6w)   (Replaces: 8186686)			Immediately	$ 206.24
14	8190797		Socket, Bulb				$ 68.63
15	W11178521		Nameplate (grey)   (Replaces: W10434972)			Immediately	$ 56.82
16	W11050761		Cover, Light				$ 18.96
6A	WPW10313844		Glass (36" Model Only)   (Replaces: W10313844)				$ 318.10
NI	W10412939		Miscellaneous Parts, Kit, Charcoal Filter (for Non-vented Installations Only)			Immediately	$ 66.98
NI	W11430939		Miscellaneous Parts, Kit, Recirculation (for Non-vented Installations Only)   (Replaces: W10294733)				$ 137.92
NI	W10294735		Miscellaneous Parts, Kit, Chimney Extension				$ 824.95
NI	W10446915		Miscellaneous Parts, Kit, 6" Makeup Air				$ 316.52

    View Diagram in Separate Window       Print Part List
