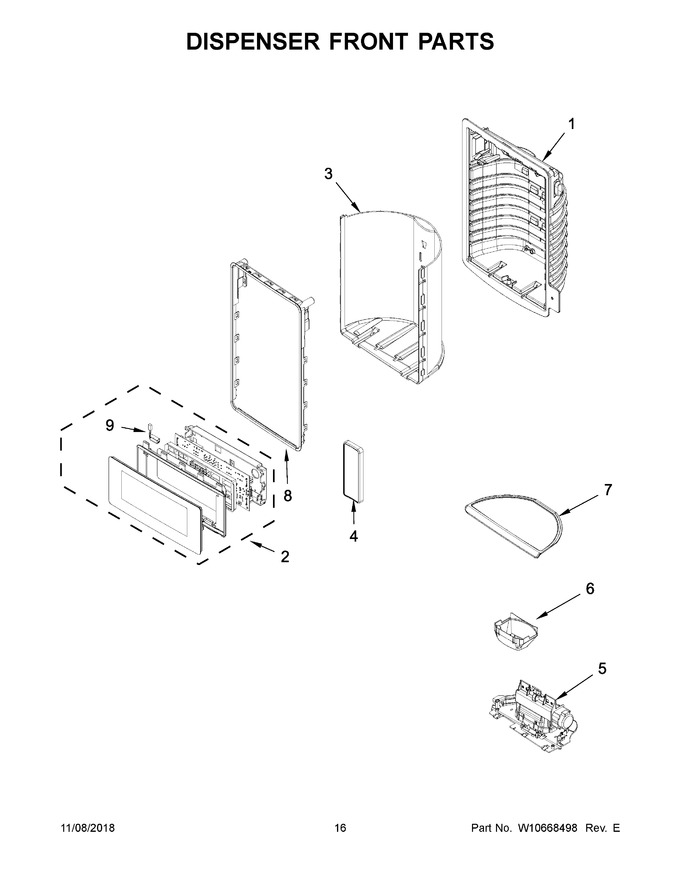

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11321476		Assembly, User Interface (silver)   (Replaces: W11106550)				$ 409.04
3	W10520867		Wall, Dispenser False (white)				$ 83.16
4	WPW10436679		Assembly, Pad (white)   (Replaces: W10436679)				$ 78.72
5	WPW10577864		Assembly, Seperator   (Replaces: W10577864)			Immediately	$ 142.06
6	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 21.55
7	W10322872		Tray, Drip (white)		Appelez-nous	-
8	W10587907		Ring, Trim (white)				$ 26.21
9	W11290115		Assembly, Led   (Replaces: W10470750)				$ 76.01
3A	W10520868		Wall, Dispenser False (black)		Appelez-nous	-
3B	W10520869		Wall, Dispenser False (grey)				$ 109.31
4A	W10436677		Assembly, Pad (black)		Appelez-nous	-
4B	W10436678		Assembly, Pad (stainless)		Appelez-nous	-
7A	WPW10322873		Tray, Drip (black)   (Replaces: W10322873)				$ 52.68
7B	W10410105		Tray, Drip (grey)				$ 93.74
8A	W10587908		Ring, Trim (black)				$ 47.22
8B	W10587910		Ring, Trim (stainless)				$ 119.93

    View Diagram in Separate Window       Print Part List
