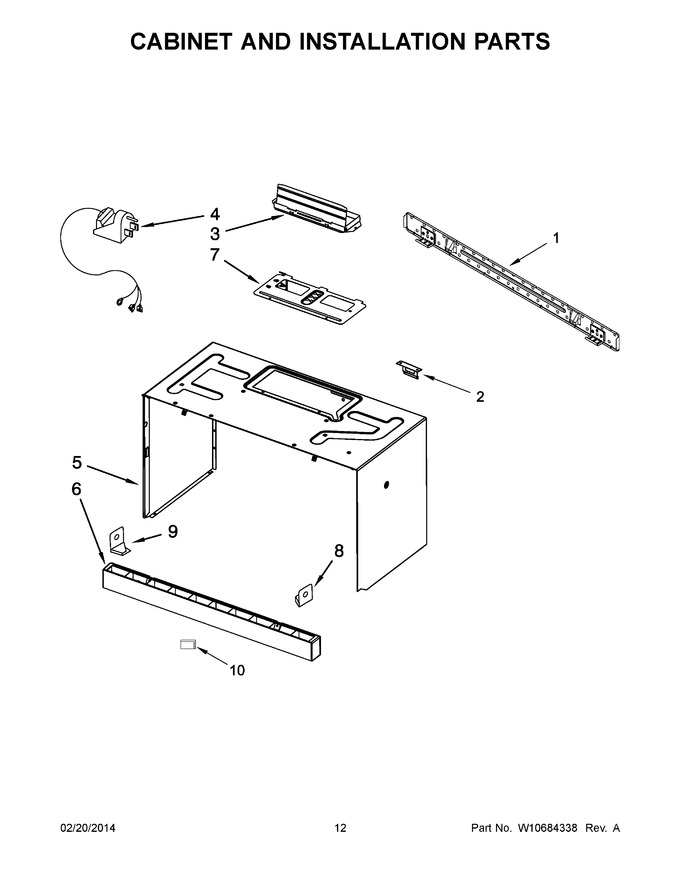

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 22.22
2	8206385		Support, Wire Clip				$ 33.48
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 76.13
4	W10708076		Cord-power   (Replaces: W10654511)				$ 19.40
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 262.73
5	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 267.76
6	W10474819		Grille, Vent (stainless)				$ 109.74
6	W10245218		Grille, Vent (black)				$ 94.46
6	W10245217		Grille, Vent (white)				$ 95.38
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10810989		Holder, Vent (right) (black Ice Models)   (Replaces: W10406307)				$ 9.20
8	W10703282		Holder, Vent (right) (stainless & White Ice Models)   (Replaces: W10393276)				$ 9.90
9	W10830163		Holder, Vent (left) (black Ice Models)   (Replaces: W10406308)				$ 12.79
9	W11026306		Holder, Vent (left) (stainless & White Ice Models)   (Replaces: W10393278)			Immediately	$ 6.80
10	W11700249		Badge   (Replaces: W10685340)				$ 63.67
NI	W10821385		Miscellaneous, Installation, Hardware   (Replaces: 8206614)			Immediately	$ 93.35
NI	W10190018		Miscellaneous, Template, Upper			Immediately	$ 6.80
NI	WP8169704		Miscellaneous, 1/4-20x3`` Panhead Screw   (Replaces: 8169704)			Immediately	$ 12.02
NI	W10450407		Miscellaneous, Harness, Main		Appelez-nous	-
NI	W10543253		Miscellaneous, Harness, Lamp And Turntable				$ 22.99
NI	W10498567		Miscellaneous, Harness, Magnetron To High Voltage Transformer			Immediately	$ 22.10
NI	W10539840		Miscellaneous, Harness, Pcba Ground Wire				$ 22.57
