01 - Cover Sheet


02 - Cooktop Parts

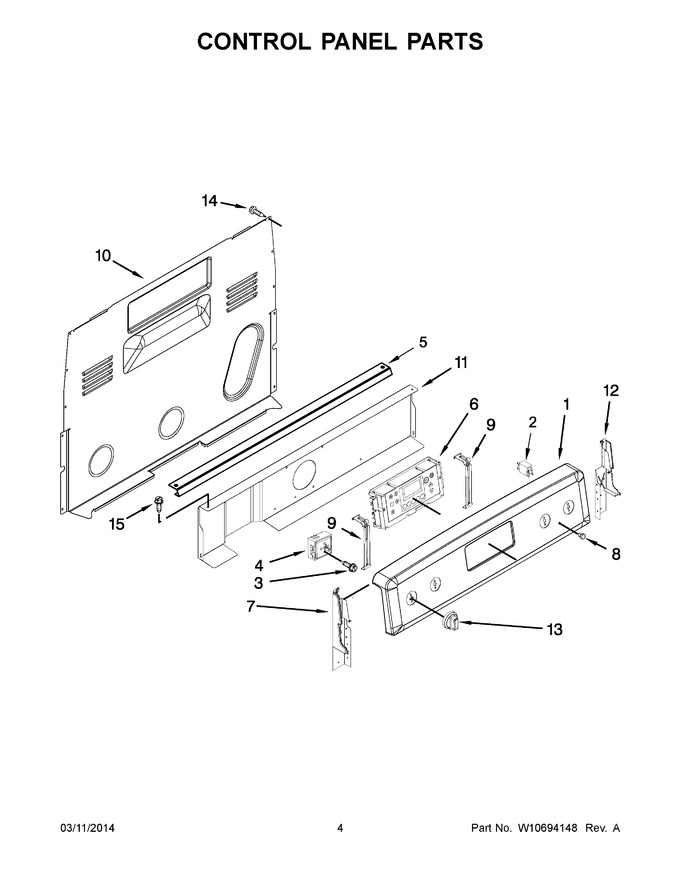

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10655833		Panel, Backguard (white)		Appelez-nous	-
1	W10655835		Panel, Backguard (black)		Appelez-nous	-
1	W11189174		Panel, Backguard (stainless)   (Replaces: W10655836)				$ 308.39
2	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 91.76
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 49.03
4	WPW10434452		Switch, Infinite (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
4	WPW10411934		Switch, Infinite (right Front)   (Replaces: W10411934)			Immediately	$ 98.85
5	W10525121		Bracket, Console Mounting				$ 88.97
6	WPW10655832		Control Board (black)   (Replaces: W10655832)				$ 249.60
6	WPW10655837		Control Board (stainless)   (Replaces: W10655837)				$ 451.00
6	WPW10655829		Control Board (white)   (Replaces: W10655829)			Immediately	$ 247.75
7	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 38.21
7	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)			Immediately	$ 138.45
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
9	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 76.33
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10134247		Shield, Heat			Immediately	$ 322.94
12	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)			Immediately	$ 40.65
12	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 54.75
13	WPW10666901		Knob (stainless)   (Replaces: W10666901)				$ 140.36
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
