01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

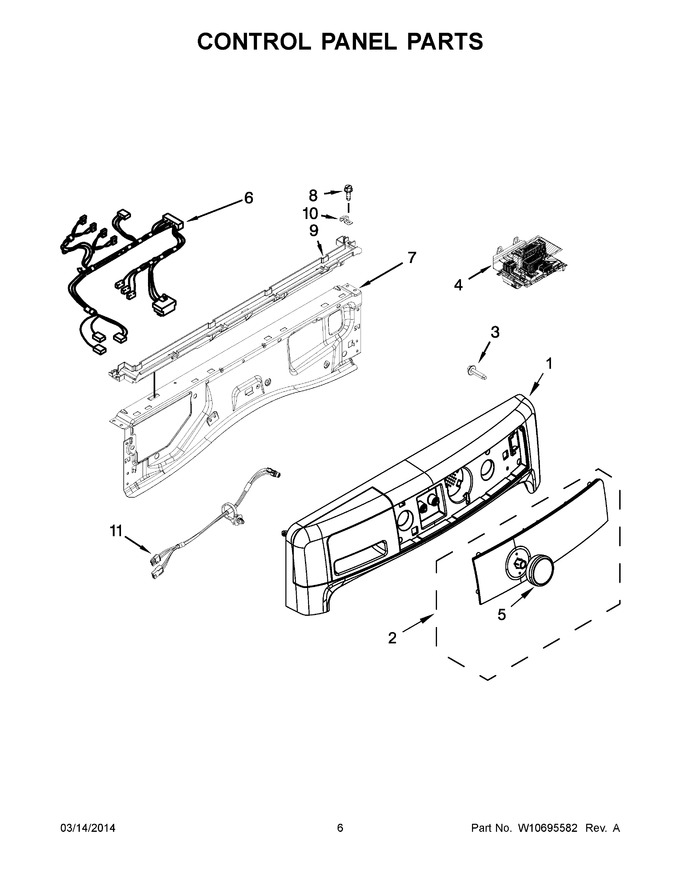

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10433200 | Assembly, Console (chrome Shadow) |
|
$ 306.34 | |||||
| 1 | W10639964 | Assembly, Console (white) |
|
$ 219.07 | |||||
| 2 | W10433182 | Assembly, Iml (chrome Shadow) |
|
- | |||||
| 2 | W10748422 | Assembly, Iml (white) (Replaces: W10433181) |
|
$ 773.26 | |||||
| 3 | W10489172 | Screw |
|
$ 10.78 | |||||
| 4 | W11031828 | Control Unit, Appliance (Replaces: W10661577) |
|
$ 537.16 | |||||
| 5 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 48.55 | |||||
| 6 | W10685628 | Harness, Main (upper) (Replaces: W10572164) |
|
$ 147.33 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.24 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 25.69 |
