SELECT A DIAGRAM

02 - Unit, Lit/optional

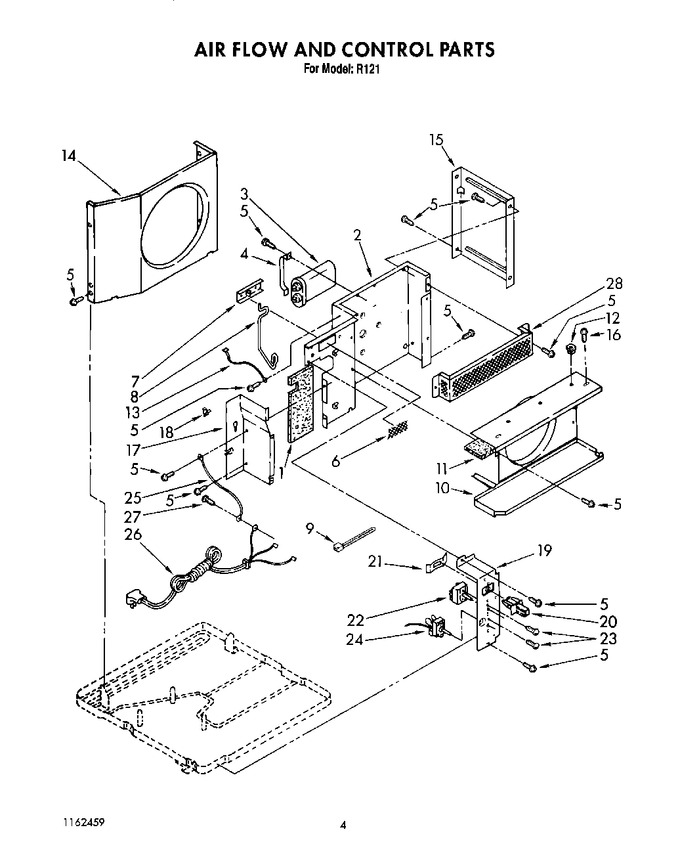

03 - Air Flow And Control


04 - Cabinet


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	947868		Insulation, Dividing Wall		Appelez-nous	-
2	1156321		Wall, Dividing (also Order 947868, Insulation)		Appelez-nous	-
3	952384		Capacitor, Running		Appelez-nous	-
4	856105		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
5	488481		Screw (repair) No.10 X 3/8		Appelez-nous	-
6	856929		Screen, Exhaust Door		Appelez-nous	-
7	856679		Door, Exhaust		Appelez-nous	-
8	856042		Arm, Exhaust Door		Appelez-nous	-
9	WPW10339879		Wire, Tie   (Replaces: 612805)				$ 7.47
10	948219		Shroud, Evaporator (includes No.11)		Appelez-nous	-
11	948220		Insulation, Evaporator Cover		Appelez-nous	-
12	487808		Fastener, Snap		Appelez-nous	-
13	857568		Wire, Capacitor Ground		Appelez-nous	-
14	856037		Shroud, Condenser		Appelez-nous	-
15	1156536		Support, Unit (2)		Appelez-nous	-
16	WP488729		Screw, Sems Sm No.8 X 1/2a (2)   (Replaces: 487910)			Immediately	$ 7.45
17	994560		Extension, Dividing Wall		Appelez-nous	-
18	644401		Clip, Retainer		Appelez-nous	-
19	996966		Panel, Control		Appelez-nous	-
20	953066		Actuator, Exhaust Door		Appelez-nous	-
21	858765		Retainer, Dent Spring		Appelez-nous	-
22	948306		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	949431		Control, Tempetature		Appelez-nous	-
25	856094		Wire, Ground		Appelez-nous	-
26	646139		Cable, Appliance		Appelez-nous	-
27	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
28	856912		Guard, Evaporator Impeller		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
