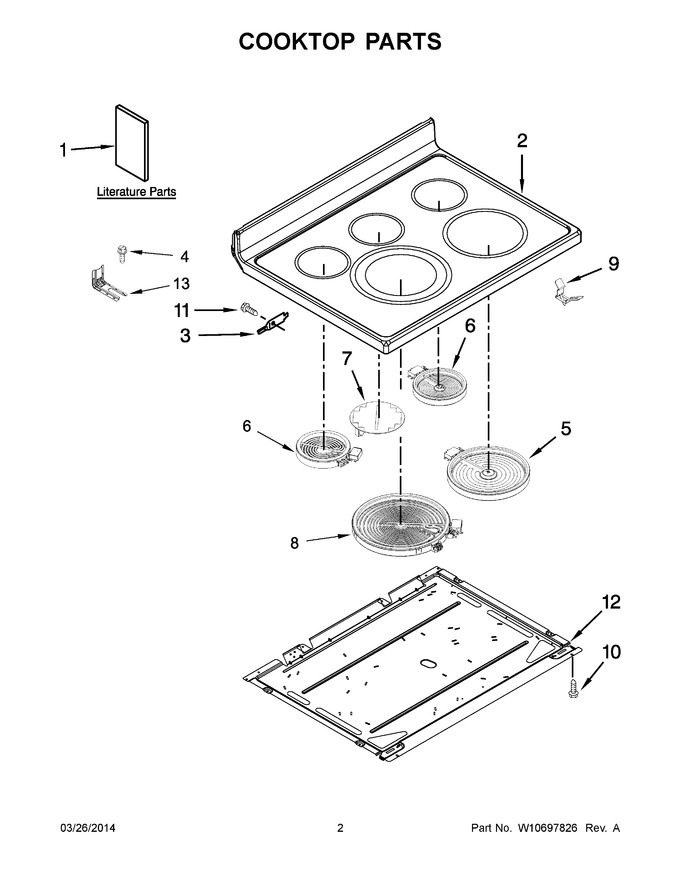

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10667170 | Tech Sheet, English |
|
- | |||||
| 1 | W10667177 | Tech Sheet, French |
|
- | |||||
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10667173 | Use And Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10702347 | Cooktop (black) (Replaces: W10655921) |
|
$ 672.35 | |||||
| 3 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 4 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 5 | WPW10251108 | Element, 3200 W (right Front) (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 6 | W11171119 | Element (1200w) (right Rear And Left Rear) (Replaces: 8273994) |
|
Immediately | $ 213.20 | ||||
| 7 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 119.66 | |||||
| 8 | WPW10162041 | Element 3000/2200/1100w (left Front) (Replaces: W10162041) |
|
$ 347.39 | |||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.82 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 11 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 12 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 129.14 | ||||
| 13 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 |
