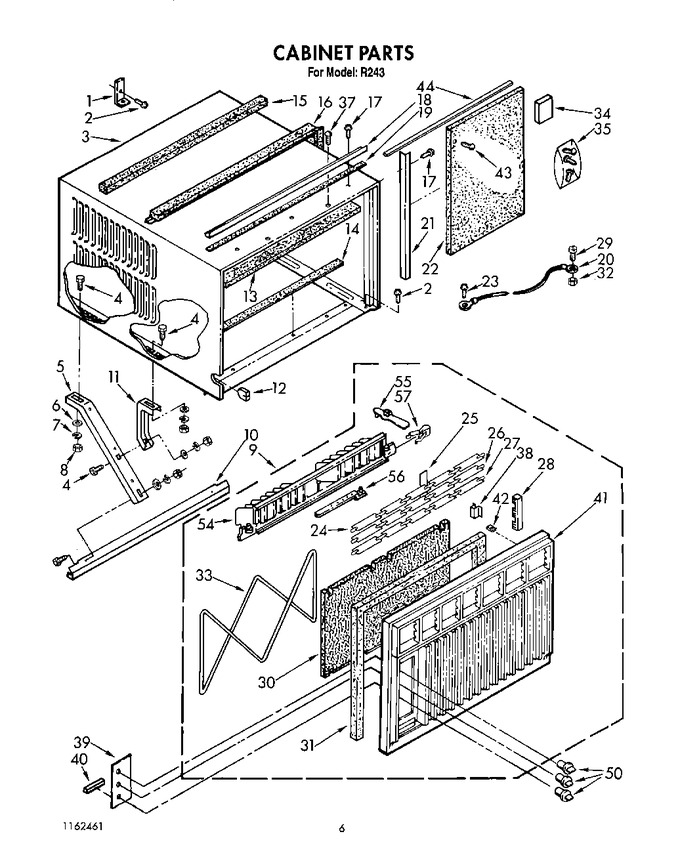

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	644228		Bracket		Appelez-nous	-
2	487371		Screw, 10 X 3/4		Appelez-nous	-
3	1157805		Cabinet		Appelez-nous	-
4	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
5	649945		Support (2)		Appelez-nous	-
6	488808		Washer (6)		Appelez-nous	-
7	486009		Lockwasher (6)		Appelez-nous	-
8	486035		Nut, Hex (1/4) (6)		Appelez-nous	-
9	1159942		Front, Cabinet (complete)		Appelez-nous	-
10	649947		Bracket		Appelez-nous	-
11	649946		Retainer, Support (2)		Appelez-nous	-
12	647849		Grommet, Wiring		Appelez-nous	-
13	1157053		Insulation, Cabinet (top)		Appelez-nous	-
13	1157055		Insulation, Cabinet (left Side)		Appelez-nous	-
13	1157054		Insulation, Cabinet (right Side)		Appelez-nous	-
14	852220		Seal, Bottom		Appelez-nous	-
15	469877		Seal, Meeting Rail		Appelez-nous	-
16	644288		Gasket, Sash		Appelez-nous	-
17	WP308685		Screw, 10 X 1/2   (Replaces: 488720)			Immediately	$ 7.08
18	644271		Angle, Top		Appelez-nous	-
19	855265		Strip, Seal		Appelez-nous	-
20	857022		Ground Wire (base To Cabinet)		Appelez-nous	-
21	644272		Angle (2)		Appelez-nous	-
22	644303		Board, Filler		Appelez-nous	-
23	488853		Screw, 8 X 3/8		Appelez-nous	-
24	947269		Louver, Horizontal (4)		Appelez-nous	-
25	855998		Spring, Louver Retainer (4)		Appelez-nous	-
26	947267		Louver, Horizontal (handle)		Appelez-nous	-
27	947268		Louver, Horizontal (notched)		Appelez-nous	-
28	00649955		Rack, Louver (2)   (Replaces: 649955)				$ 488.32
29	488854		Screw, 8 X 3/8		Appelez-nous	-
30	649958		Filter		Appelez-nous	-
31	649725		Seal, Front (top & Sides)		Appelez-nous	-
31	649726		Seal, Front (bottom)		Appelez-nous	-
32	WP486255		Nut, No. 8   (Replaces: 486529)				$ 5.82
33	476707		Retainer, Filter		Appelez-nous	-
34	995274		Spacer Block, Filler Board		Appelez-nous	-
35	993848		Bag, Accessory		Appelez-nous	-
37	1157141		Screw (2)		Appelez-nous	-
38	855999		Clip, Retainer (4)		Appelez-nous	-
39	1160191		Plate, Escutcheon		Appelez-nous	-
40	469175		Spacer, Escutcheon Plate		Appelez-nous	-
41	1159844		Front, Cabinet		Appelez-nous	-
42	1157140		Clip (2)		Appelez-nous	-
43	WP965173		Screw, 8 X 3/8   (Replaces: 488017)			Immediately	$ 10.68
44	998180		Seal		Appelez-nous	-
50	953054		Knob, Control (3)		Appelez-nous	-
54	649957		Louver, Vertical		Appelez-nous	-
55	852010		Handle, Vertical Louver (2)		Appelez-nous	-
56	852209		Link, Vertical Louver (2)		Appelez-nous	-
57	641484		Spring, Detent				$ 150.14
