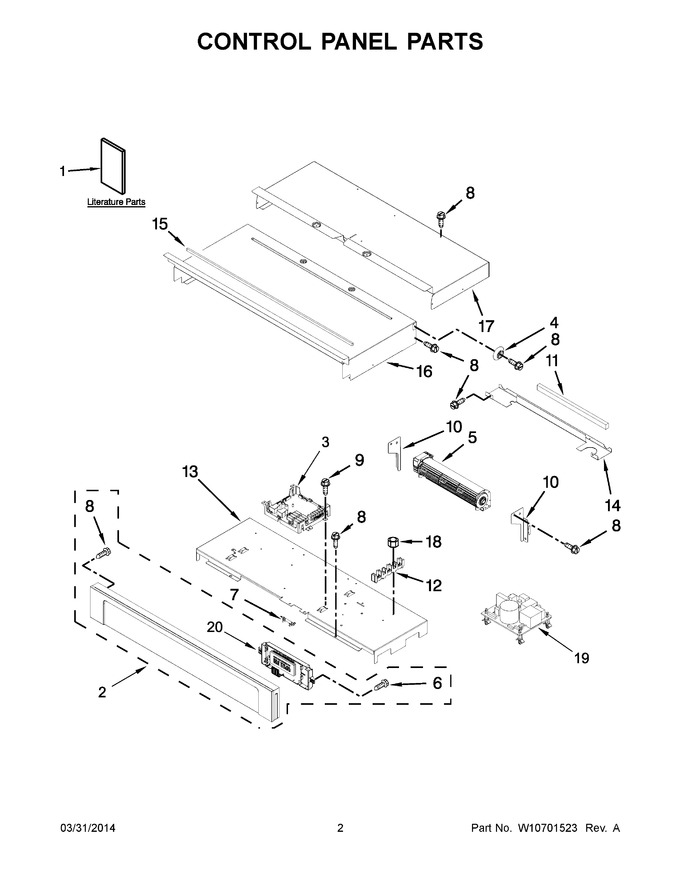

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10351242		Installation Instructions		Appelez-nous	-
1	W10351318		Instructions, Undercounter Install		Appelez-nous	-
1	W10354189		Use & Care Guide		Appelez-nous	-
1	W10507056		Tech Sheet		Appelez-nous	-
2	W10540083		Assembly, Control Panel (includes Overlay) (stainless)				$ 345.70
2	W10540085		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
2	W10540084		Assembly, Control Panel (includes Overlay) (black)		Appelez-nous	-
3	WPW10496830		Manager, Appliance   (Replaces: W10496830)				$ 389.03
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10641253		Blower				$ 127.63
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 7.88
7	WPW10545255		Fuse, Thermal   (Replaces: W10545255)			Immediately	$ 25.43
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
13	W10347650		Tray, Electronic				$ 113.47
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 80.69
16	W10318192		Chassis, Cover Top Front 30``				$ 124.93
17	W10904156		Chassis, Cover Top Back 30``   (Replaces: W10318194)		Appelez-nous	-
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.80
19	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 285.62
20	W10496841		Board, Navigator		Appelez-nous	-
