01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

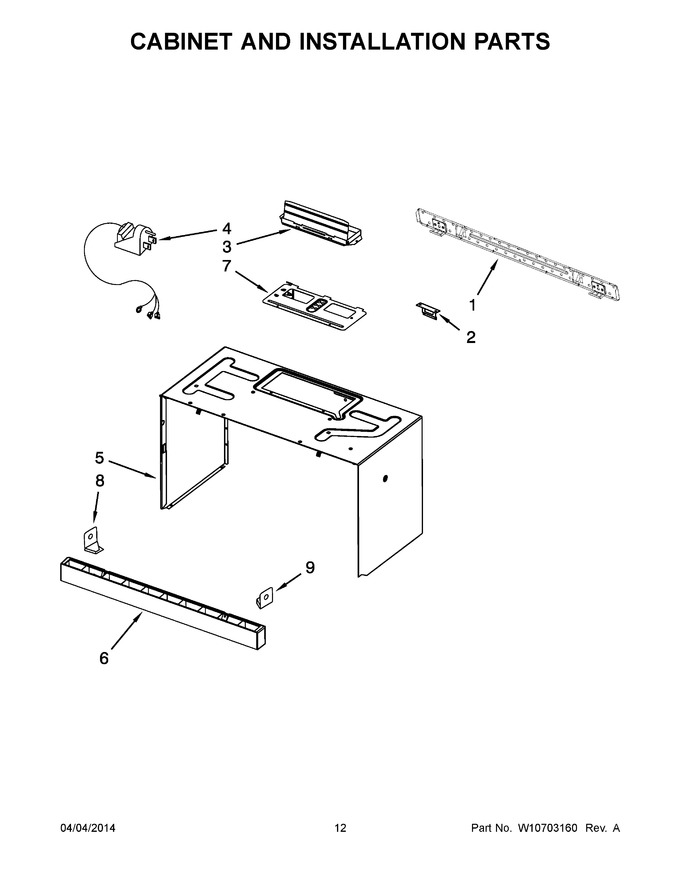

| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 22.22 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 33.48 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 76.13 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 19.40 | |||||
| 5 | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 267.76 | |||||
| 6 | W10245216 | Grille, Vent (stainless) |
|
$ 130.20 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10810989 | Vent Grid Holder, Left Side (black) (Replaces: W10406307) |
|
$ 9.20 | |||||
| 9 | W10830163 | Vent Grid Holder, Right Side (black) (Replaces: W10406308) |
|
$ 12.79 | |||||
| NI | 8205948 | Miscellaneous, Installation, Hardware |
|
$ 24.21 | |||||
| NI | W10190018 | Miscellaneous, Template, Upper |
|
Immediately | $ 6.80 | ||||
| NI | WP8169704 | Miscellaneous, 1/4-20x3`` Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 12.02 | ||||
| NI | W10556400 | Miscellaneous, Harness, Main |
|
$ 163.69 | |||||
| NI | W10539840 | Miscellaneous, Ground Wire To Connect Pcb (Replaces: 8205696) |
|
$ 22.57 | |||||
| NI | W10399322 | Miscellaneous, Harness, Door Message Assembly |
|
$ 139.25 | |||||
| NI | W10107760 | Miscellaneous, Ground Wire, Filter (for Stainless Model Only) |
|
- | |||||
| NI | W10553873 | Miscellaneous, Harness, Head Lamp And Turntable Assembly |
|
$ 110.28 |
