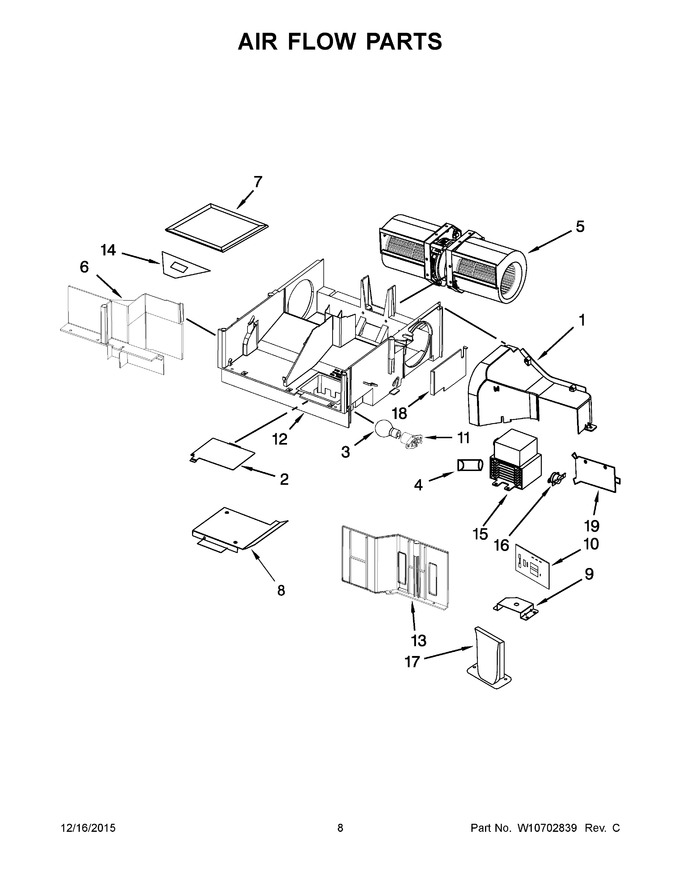

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 8.25 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.94 | ||||
| 4 | 4393605 | Cover, Terminal Magnetron |
|
- | |||||
| 5 | W11441128 | Motor, Hood Fan Blower (Replaces: W10439092) |
|
Immediately | $ 200.01 | ||||
| 6 | W10448769 | Plate, Air Guide Sealing |
|
- | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 18.19 | ||||
| 8 | W10138797 | Guide, Air |
|
$ 85.68 | |||||
| 9 | W10532064 | Bracket, Mounting Filter Board (Replaces: W10313270) |
|
- | |||||
| 10 | W10422269 | Filter, Noise |
|
Immediately | $ 30.41 | ||||
| 11 | WPW10210878 | Holder, Lamp Cavity (Replaces: W10210878) |
|
Immediately | $ 31.38 | ||||
| 12 | W10448773 | Base Plate, Air Guide |
|
$ 133.26 | |||||
| 13 | W10342991 | Shield, Finger |
|
$ 152.85 | |||||
| 14 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 15 | WPW10693025 | Magnetron (Replaces: W10693025) |
|
Immediately | $ 206.22 | ||||
| 16 | W10491433 | Thermostat, Magnetron |
|
$ 82.36 | |||||
| 17 | W11381953 | Seal, Waterproof (Replaces: W10269467) |
|
- | |||||
| 18 | W10269469 | Cover, Right Duct |
|
$ 74.77 | |||||
| 19 | W10313274 | Bracket, Noise Filter |
|
$ 29.09 |
