SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Cabinet


05 - Optional


06 - Accessory

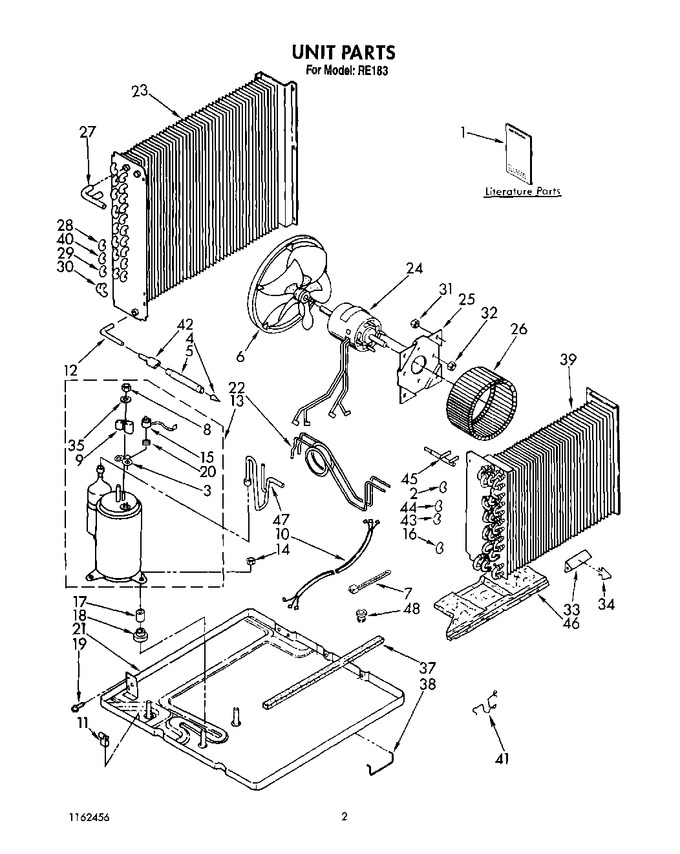

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1160741		Sheet, Tech		Appelez-nous	-
1	LIT1160740		Wiring Diagram		Appelez-nous	-
1	LIT1162431		Guide, Operation		Appelez-nous	-
1	LIT1162456		List, Repair Parts		Appelez-nous	-
2	855199		Bend, Return (8)		Appelez-nous	-
3	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
4	49599		Strainer		Appelez-nous	-
5	1155598		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	997226		Blade, Fan		Appelez-nous	-
7	WPW10339879		Wire, Tie   (Replaces: 612805)				$ 7.47
8	WP950027		Nut, Cover   (Replaces: 950027)				$ 5.20
9	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
10	484136		Harness, Wiring		Appelez-nous	-
11	642684		Clamp, Tube (2)		Appelez-nous	-
12	1155580		Tube, 90~		Appelez-nous	-
13	1155501		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	WP1161170		Overload   (Replaces: 1155605)				$ 84.72
16	997669		Bend, Return (11)		Appelez-nous	-
17	950020		Sleeve (3)		Appelez-nous	-
18	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
19	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
20	950032		Spring, Overload		Appelez-nous	-
21	950364		Base		Appelez-nous	-
22	1156440		Tube Restrictor (3) (length 46.0``)				$ 6,949.23
23	1156327		Condenser		Appelez-nous	-
24	952072		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	642691		Wheel, Blower		Appelez-nous	-
27	1156330		Tube, Manifold		Appelez-nous	-
28	708532		Bend, Return (12)		Appelez-nous	-
29	708531		Bend, Return (7)		Appelez-nous	-
30	1156107		Bend, 3-way		Appelez-nous	-
31	858122		Locknut (4)		Appelez-nous	-
32	WP488130		Nut, 8-32 (4)   (Replaces: 488130)				$ 6.59
33	472046		Anticipator		Appelez-nous	-
34	472047		Clip (2)		Appelez-nous	-
35	950037		Washer		Appelez-nous	-
37	1162509		Seal		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	1156493		Evaporator		Appelez-nous	-
40	1156329		Bend Return (2)		Appelez-nous	-
41	852272		Clip, Mtg. (3)		Appelez-nous	-
42	947364		Tube, Flow Divider		Appelez-nous	-
43	1156529		Bend, Return		Appelez-nous	-
44	1156531		Bend, Return		Appelez-nous	-
45	1155510		Tube, Manifold		Appelez-nous	-
46	997236		Insulation, Base		Appelez-nous	-
47	1155593		Tube, Suction		Appelez-nous	-
48	948130		Bushing, Base		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
