SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Accessory Kit


05 - Cabinet And Front


06 - Optional

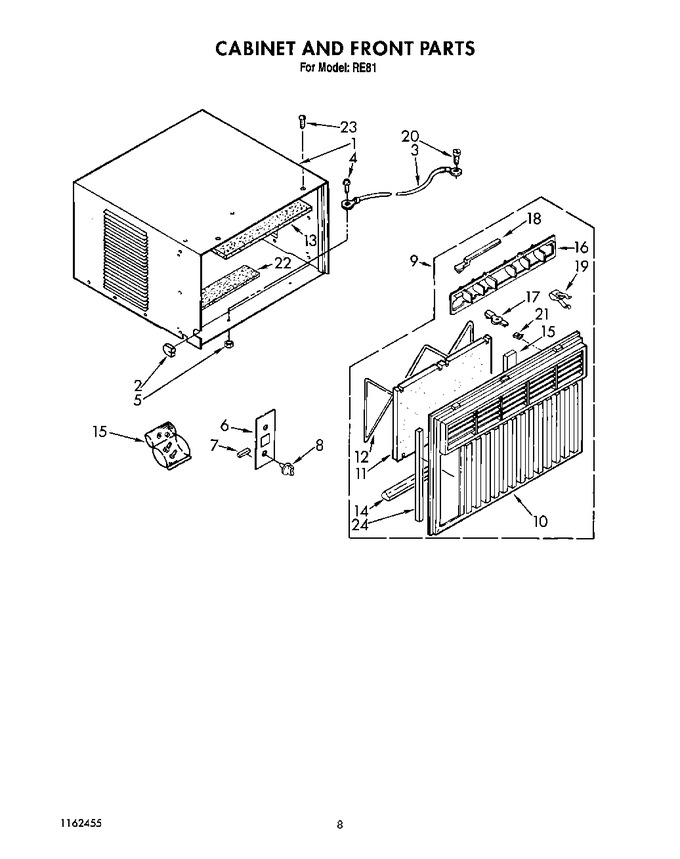

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157350		Cabinet		Appelez-nous	-
2	647849		Grommet, Cable		Appelez-nous	-
3	857017		Wire, Ground		Appelez-nous	-
4	488853		Screw, Mach 8-32 X 3/8		Appelez-nous	-
5	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
6	1160235		Escutcheon, Control		Appelez-nous	-
7	470036		Spacer, Plate (3)		Appelez-nous	-
8	953054		Knob, Control		Appelez-nous	-
9	1160230		Front Assembly, Cabinet (complete)		Appelez-nous	-
10	1160231		Front, Cabinet		Appelez-nous	-
11	648008		Filter, Air		Appelez-nous	-
12	476707		Retainer, Filter		Appelez-nous	-
13	647847		Insulation, Cabinet (right Side)		Appelez-nous	-
13	647848		Insulation, Cabinet (left Side)		Appelez-nous	-
13	950157		Insulation, Cabinet (top)		Appelez-nous	-
14	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
14	647914		Seal, Cabinet Front		Appelez-nous	-
15	993823		Bag, Accessory		Appelez-nous	-
16	953068		Louver, Vertical		Appelez-nous	-
17	953159		Handle, Vertical Louver		Appelez-nous	-
18	953067		Link, Vert. Louver (2)		Appelez-nous	-
19	641484		Spring, Detent (2)				$ 150.14
20	488854		Screw, St 8-32 X 3/8		Appelez-nous	-
21	1157140		Clip (2)		Appelez-nous	-
22	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 12.55
22	647854		Seal, Cabinet Bottom		Appelez-nous	-
23	1157141		Screw (2)		Appelez-nous	-
24	649198		Seal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
