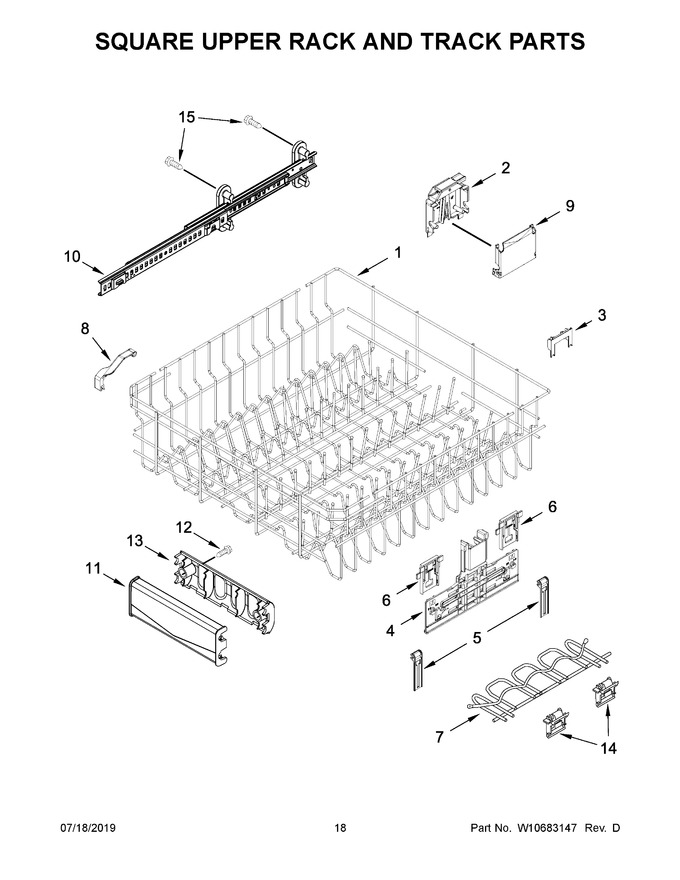

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10599464) |
|
Immediately | $ 161.62 | ||||
| 2 | WPW10588164 | Housing, Adjuster (left Hand) (Replaces: W10588164) |
|
Immediately | $ 17.06 | ||||
| 3 | WPW10250160 | Clip, Adjuster (Replaces: W10250160) |
|
Immediately | $ 44.28 | ||||
| 4 | WPW10546503 | Adjuster Assembly (Replaces: W10546503) |
|
Immediately | $ 39.43 | ||||
| 5 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 32.30 | ||||
| 6 | WPW10195840 | Positioner, Adjuster (Replaces: W10195840) |
|
Immediately | $ 46.19 | ||||
| 7 | W10669976 | Cupshelf Assembly |
|
$ 95.79 | |||||
| 8 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 28.40 | |||||
| 9 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 6.85 | ||||
| 10 | W11259785 | Track Assembly (left Hand) (Replaces: W11192640) |
|
Immediately | $ 81.14 | ||||
| 11 | W10635042 | Handle, Dishrack (front) |
|
$ 86.63 | |||||
| 12 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 | ||||
| 13 | W10562068 | Handle, Dishrack (rear) |
|
$ 25.20 | |||||
| 14 | 8562026 | Clip, Cupshelf |
|
$ 91.06 | |||||
| 15 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 69.17 | ||||
| 10A | W11259786 | Track Assembly (right Hand) (Replaces: W11192638) |
|
Immediately | $ 87.12 | ||||
| 2A | WPW10588165 | Housing, Adjuster (right Hand) (Replaces: W10588165) |
|
Immediately | $ 50.80 |
