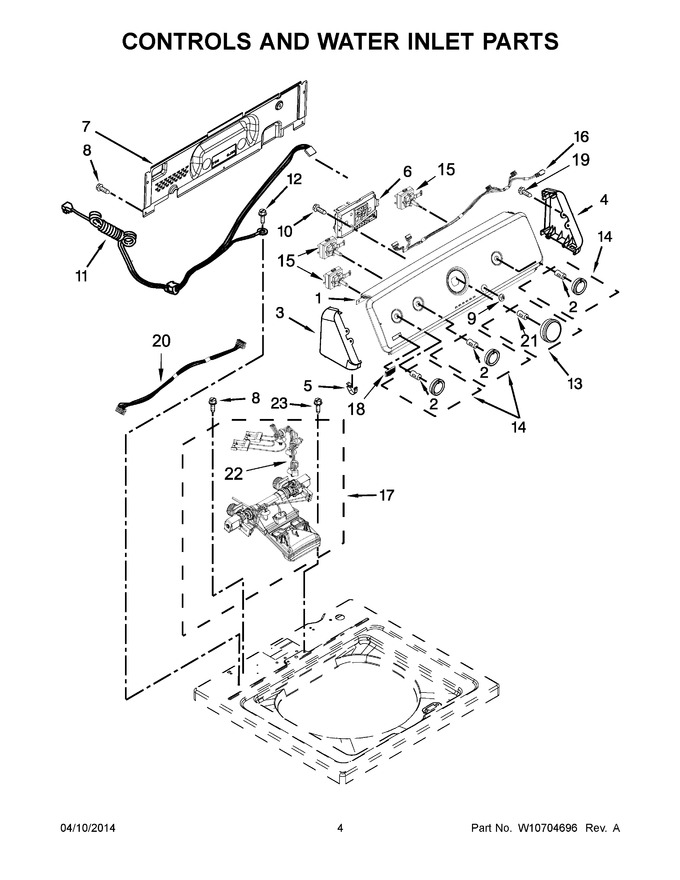

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10468416 | Panel, Console (Replaces: W10468416) |
|
$ 348.46 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10193824 | End Cap (left) (white) (Replaces: W10193824) |
|
$ 66.95 | |||||
| 4 | WPW10193821 | End Cap (right) (white) (Replaces: W10193821) |
|
$ 67.25 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W10671330 | Control Unit Assembly, Machine And Motor |
|
$ 266.54 | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | W11164083 | Push Button, Start (Replaces: W10584360) |
|
$ 67.38 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 147.07 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11837899 | Assembly, Timer Knob (grey) (Replaces: W10558463) |
|
Immediately | $ 16.95 | ||||
| 14 | W11837893 | Assembly, Control Knob (grey) (Replaces: W10562155) |
|
$ 16.95 | |||||
| 15 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 16 | W10291177 | Harness, Upper (temperature) |
|
$ 137.40 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10501149) |
|
Immediately | $ 84.60 | ||||
| 18 | W10199708 | Badge |
|
$ 47.95 | |||||
| 19 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 20 | W10291184 | Harness, Upper E-star |
|
$ 147.71 | |||||
| 21 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 22 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 175.43 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 |
