SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

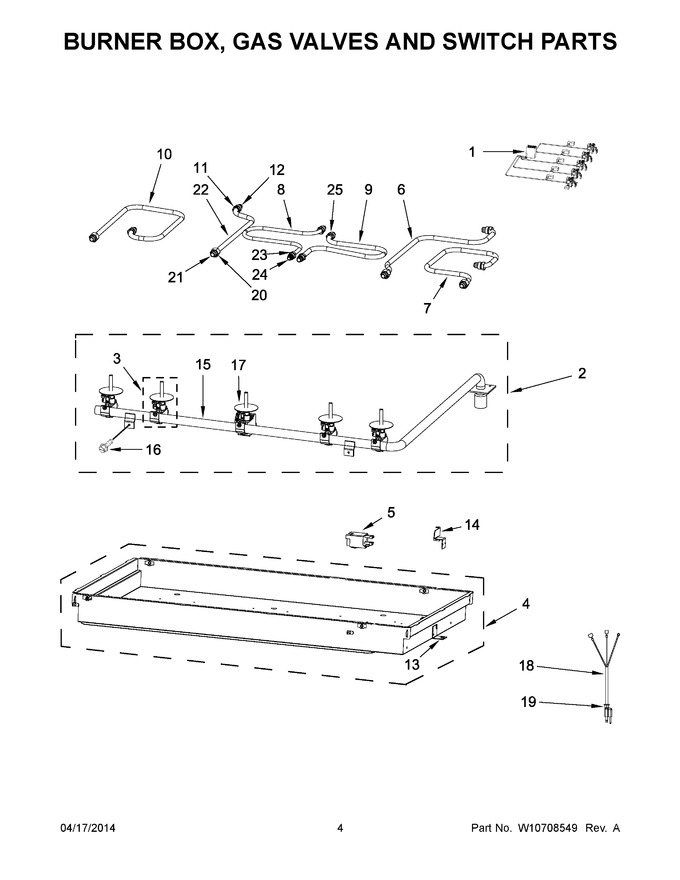

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10691447		Harness, Switch			Immediately	$ 317.90
2	W10691439		Assembly, Manifold				$ 439.20
3	W10691431		Valve, Gas (right Rear)				$ 169.84
3	W10691438		Valve, Gas (center)				$ 330.96
3	W10691437		Valve, Gas (left Front, Left Rear, Right Front)				$ 170.94
4	W10691454		Assembly, Burner Box		Appelez-nous	-
5	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 79.63
6	W10691692		Tubing, Burner (right Rear)				$ 108.11
7	W10692352		Tubing, Burner (right Front)		Appelez-nous	-
8	W10691690		Tubing, Burner (1/4`` Center Simmer)		Appelez-nous	-
9	W10691691		Tubing, Burner (center)		Appelez-nous	-
10	W10691687		Tubing, Burner (left Front)		Appelez-nous	-
11	W10575399		Ferrule, Injector		Appelez-nous	-
12	W10575398		Nut, Injector		Appelez-nous	-
13	8190978		Bracket, Mounting				$ 85.09
14	W10617630		Bracket, Maintop				$ 72.86
15	W10617475		Bracket, Valve		Appelez-nous	-
16	W10617476		Screw, Valves		Appelez-nous	-
17	8190911		Washer (spark Switch)		Appelez-nous	-
18	W10392007		Cord, Power   (Replaces: W10618502)				$ 101.06
19	W10618504		Relief, Strain				$ 30.31
20	8190918		Nut, Compression		Appelez-nous	-
21	8190917		Sleeve, Compresson		Appelez-nous	-
22	W10691688		Tubing, Burner (left Rear)		Appelez-nous	-
23	W10692377		Nut, Compression 1/4`` Tubing		Appelez-nous	-
24	W10692371		Sleeve, Compression 1/4`` Tubing		Appelez-nous	-
25	W10692372		Nut, Compression		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10691233		Cap, Burner (melt Small Burner)				$ 340.33
NI	W10678586		Knob, Pro-style (set Of 5)				$ 159.15
NI	W10691449		Harness, Main				$ 237.87
NI	W10625907		Screw, Burner Box Mounting (8-32 X 3/8`` Pan Head)				$ 21.74
NI	W10623148		Screw, Burner Box Mounting (10-32 X 1`` Pan Head)		Appelez-nous	-
NI	W10625904		Screw, Cooktop (6-32 X 3/8`` Pan Head)				$ 21.70
NI	W10626014		U-nut, Cooktop Mounting		Appelez-nous	-
NI	W10625905		Screw, Manifold Pipe Mounting (8 X 3/8`` Pan Head)				$ 18.07
NI	W10686634		Kit, Orifice Lp Conversion				$ 286.79
NI	W10686630		Kit, Orifice Lp High Altitude Conversion				$ 79.62
NI	W10686629		Kit, Orifice Ng High Altitude Conversion		Appelez-nous	-
