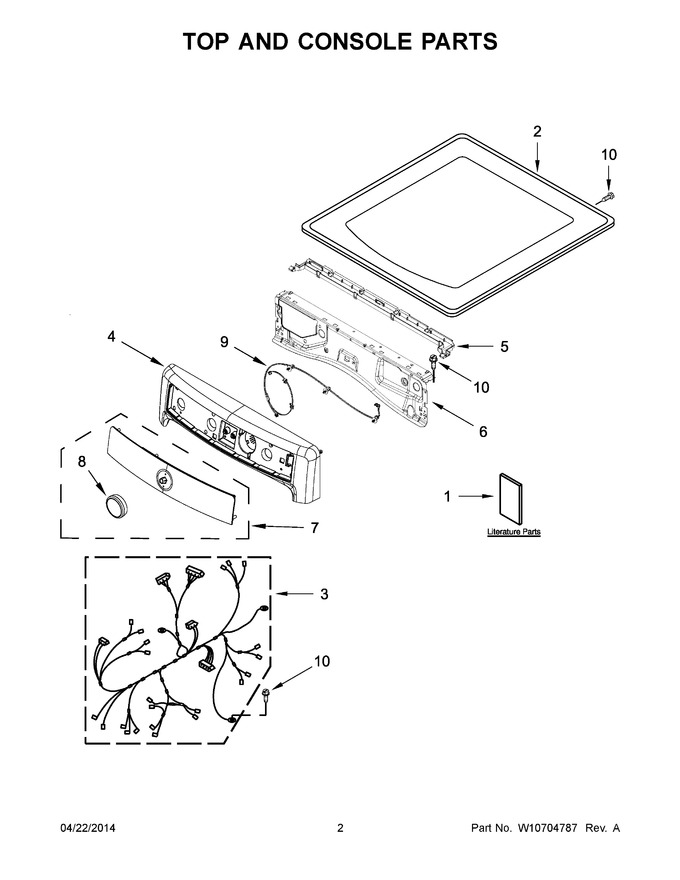

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10676165 | Installation Instructions |
|
- | |||||
| 1 | W10596022 | Use And Care Guide |
|
- | |||||
| 1 | W10606147 | Tech Sheet |
|
- | |||||
| 1 | W10617517 | Wiring Diagram |
|
- | |||||
| 1 | W10678962 | Quick Start Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | W10617516 | Harness, Wiring (main) |
|
- | |||||
| 4 | WPW10391555 | Assembly, Console (white) (Replaces: W10391555) |
|
$ 351.18 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W10433192 | Assembly, Iml (white) |
|
- | |||||
| 8 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 48.55 | |||||
| 9 | W11025125 | Cable, User Interface (Replaces: W10540654) |
|
Immediately | $ 11.94 | ||||
| 10 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 |
