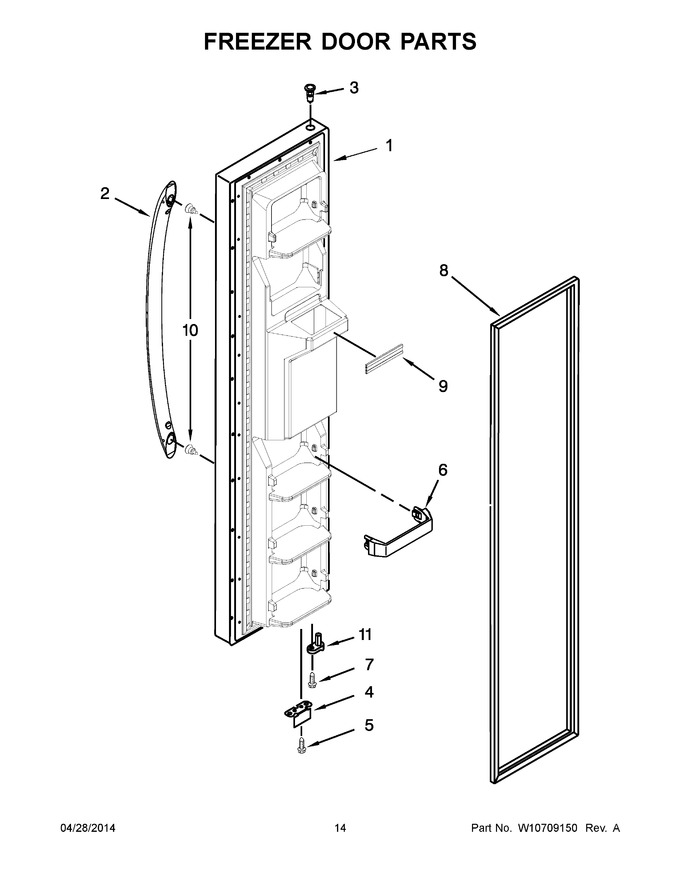

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10651096		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)   (Replaces: W10651096)				$ 1,443.98
1	LW10651097		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)   (Replaces: W10651097)		Appelez-nous	-
1	LW10651099		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)   (Replaces: W10651099)		Appelez-nous	-
2	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 156.70
2	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 228.74
2	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 156.70
3	WP2182181		Thimble   (Replaces: 2182181)				$ 7.34
4	2306940B		Bracket, Door Stop (black)				$ 35.07
4	2306940		Bracket, Door Stop (silver)				$ 91.74
5	WP489483		Screw   (Replaces: 489420)				$ 10.27
6	WP2309717		Trim, Door   (Replaces: 2309717)				$ 52.78
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
8	2159072		Door Gasket, Magnetic (beige)   (Replaces: 2309604)				$ 291.24
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 293.32
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 21.84
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
11	WP2223752		Thimble, Cam   (Replaces: 2223752)				$ 19.04

    View Diagram in Separate Window       Print Part List
