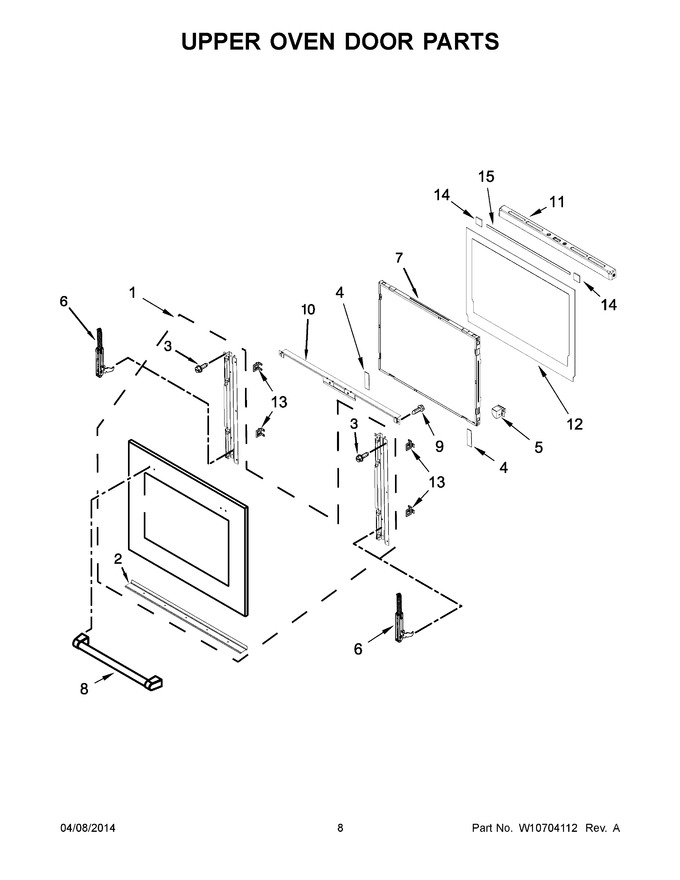

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10587570 | Assembly, Door Glass (stainless) |
|
- | |||||
| 2 | W10479068 | Bracket, Lower Door |
|
$ 18.01 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 4 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 9.33 | |||||
| 5 | WPW10581826 | Bracket, Door (right) (Replaces: W10581826) |
|
$ 59.97 | |||||
| 5 | WPW10581831 | Bracket, Door (left) (Replaces: W10581831) |
|
$ 33.48 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10419877) |
|
Immediately | $ 101.57 | ||||
| 7 | WPW10347598 | Assembly, Window Pack (Replaces: W10347598) |
|
Immediately | $ 362.71 | ||||
| 8 | W10246102A | Handle, Door (stainless) (Replaces: W10246102) |
|
- | |||||
| 9 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.80 | ||||
| 10 | W10459351 | Bracket, Upper Glass |
|
$ 73.27 | |||||
| 11 | WPW10416257 | Vent, Door Top (Replaces: W10416257) |
|
$ 249.63 | |||||
| 12 | WPW10335920 | Liner, Door (Replaces: W10335920) |
|
$ 455.99 | |||||
| 13 | WPW10549747 | Clip, Spring (Replaces: W10549747) |
|
$ 18.82 | |||||
| 14 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 11.20 | ||||
| 15 | W11082539 | Pad, Vent (Replaces: W10489273) |
|
$ 109.99 |
