SELECT A DIAGRAM

01 - Cover Sheet

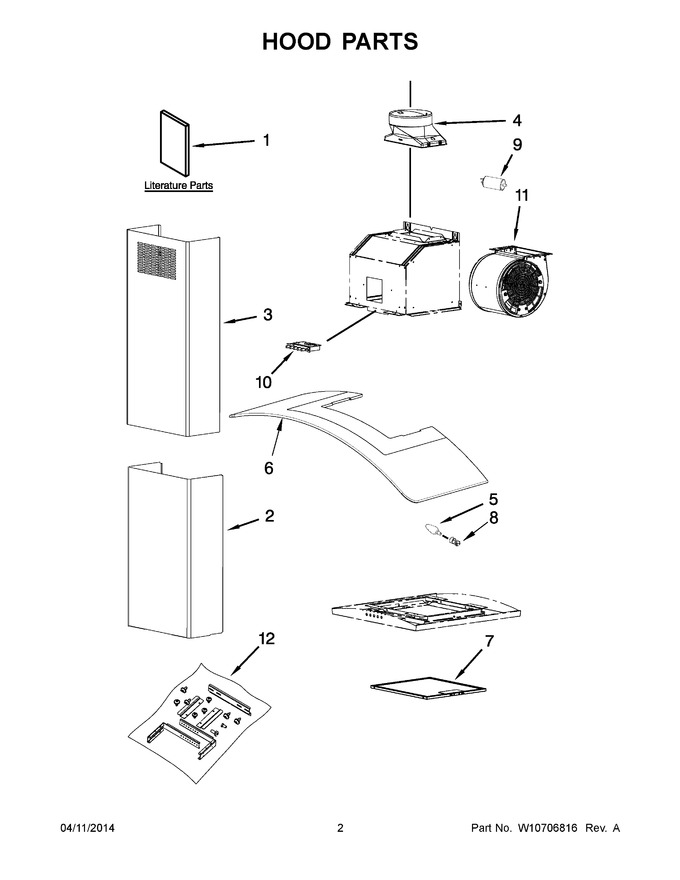

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10526059		Use And Care Guide		Appelez-nous	-
2	W11590865		Chimney, Upper   (Replaces: W10313840)				$ 350.33
3	W11590865		Chimney, Lower   (Replaces: W10313839)				$ 350.33
4	WPW10313841		Damper, Hood   (Replaces: W10313841)				$ 179.54
5	WP8190806		Bulb, Light 40 Watts   (Replaces: 8190806)				$ 70.76
6	WPW10313844		Glass (36``)   (Replaces: W10313844)				$ 318.10
6	WPW10313843		Glass (30``)   (Replaces: W10313843)			Immediately	$ 304.98
7	W10169961A		Filter, Grease   (Replaces: W10169961)			Immediately	$ 37.65
8	8190797		Socket, Bulb				$ 68.63
9	W10256657		Capacitor			Immediately	$ 84.93
10	WPW10313838		Control, Motor   (Replaces: W10313838)				$ 212.84
11	WPW10562742		Motor, Fan   (Replaces: W10562742)				$ 298.32
12	WPW10576677		Hardware, Installation   (Replaces: W10576677)				$ 172.78
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11430939		Accessories, Recirculation Kit (for Non-vented Installations Only)   (Replaces: W10294733)				$ 137.92
NI	W10412939		Accessories, Charcoal Filter Kit (for Non-vented Installations Only)			Immediately	$ 66.98
NI	W10294735		Accessories, Chimney Extension Kit				$ 824.95
NI	W10446915		Accessories, 6`` Makeup Air Kit				$ 316.52

    View Diagram in Separate Window       Print Part List
