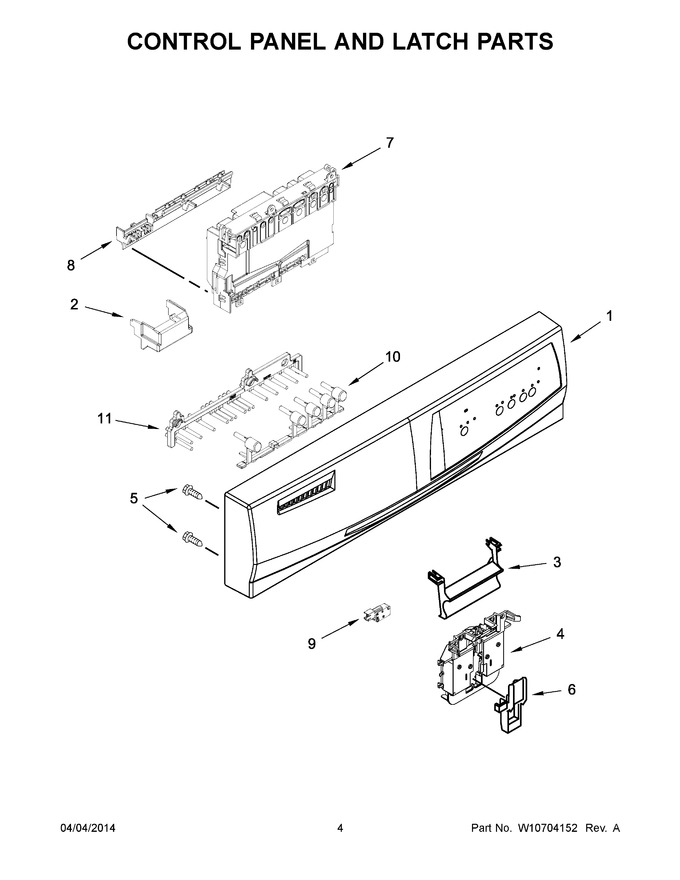

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10551671		Console Assembly (includes Insert And Vent Gasket) (black)   (Replaces: W10669887)				$ 248.23
1	W10669889		Console Assembly (includes Insert And Vent Gasket) (white)		Appelez-nous	-
1	W10669888		Console Assembly (includes Insert And Vent Gasket) (biscuit/bisque)		Appelez-nous	-
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 28.27
3	8534986		Handle, Latch (biscuit/bisque)				$ 80.76
3	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 114.42
3	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 117.95
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 112.70
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 7.57
6	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 100.16
7	W10804120		Control, Electronic   (Replaces: W10588602)			Immediately	$ 107.84
8	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 21.03
9	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 74.60
10	WPW10274840		Button Tree   (Replaces: W10274840)				$ 17.78
11	W10854407		Light Pipe   (Replaces: W10274836)				$ 81.30

    View Diagram in Separate Window       Print Part List
