View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

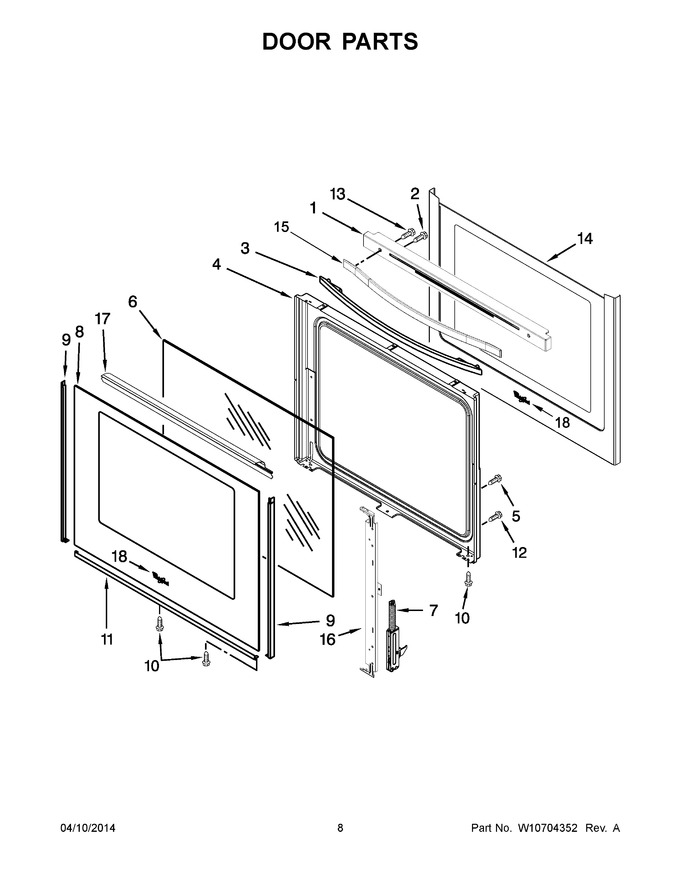

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10294855 | Trim, Top (black) |
|
Immediately | $ 127.84 | ||||
| 1 | W10335333 | Trim, Top (stainless) |
|
$ 157.47 | |||||
| 1 | WPW10335331 | Trim, Top (white) (Replaces: W10335331) |
|
Immediately | $ 112.82 | ||||
| 2 | WPW10317886 | Screw (Replaces: W10465151) |
|
Immediately | $ 7.38 | ||||
| 3 | W10300490 | Handle, Door (black) |
|
Immediately | $ 174.67 | ||||
| 3 | W10300489 | Handle, Door (white) |
|
Immediately | $ 220.39 | ||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | WPW10440013 | Hinge, Active Door (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 8 | WPW10289142 | Glass, Outer (black (black Ice Model)) (Replaces: W10289142) |
|
$ 302.12 | |||||
| 8 | WPW10289141 | Glass, Outer (white (white Ice Model)) (Replaces: W10289141) |
|
$ 327.87 | |||||
| 8 | WPW10333988 | Glass, Outer (black) (Replaces: W10333988) |
|
$ 318.96 | |||||
| 8 | WPW10333987 | Glass, Outer (white) (Replaces: W10333987) |
|
Immediately | $ 290.12 | ||||
| 9 | W10334004 | Trim, Side (black) |
|
$ 210.38 | |||||
| 9 | W10334003 | Trim, Side (white) |
|
Immediately | $ 80.72 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 11 | WPW10333990 | Trim, Lower (white) (Replaces: W10333990) |
|
Immediately | $ 72.20 | ||||
| 11 | W10334031 | Trim, Lower (black) |
|
$ 70.07 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 14 | W10289144 | Glass Assembly, Outer Door (stainless (includes Badge)) |
|
$ 237.78 | |||||
| 15 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 171.80 | ||||
| 16 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 17 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 18 | W11178521 | Badge (grey) (Replaces: W10434972) |
|
Immediately | $ 56.82 | ||||
| 18 | W11178521 | Badge (white) (Replaces: W10434971) |
|
Immediately | $ 56.82 |
