SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts

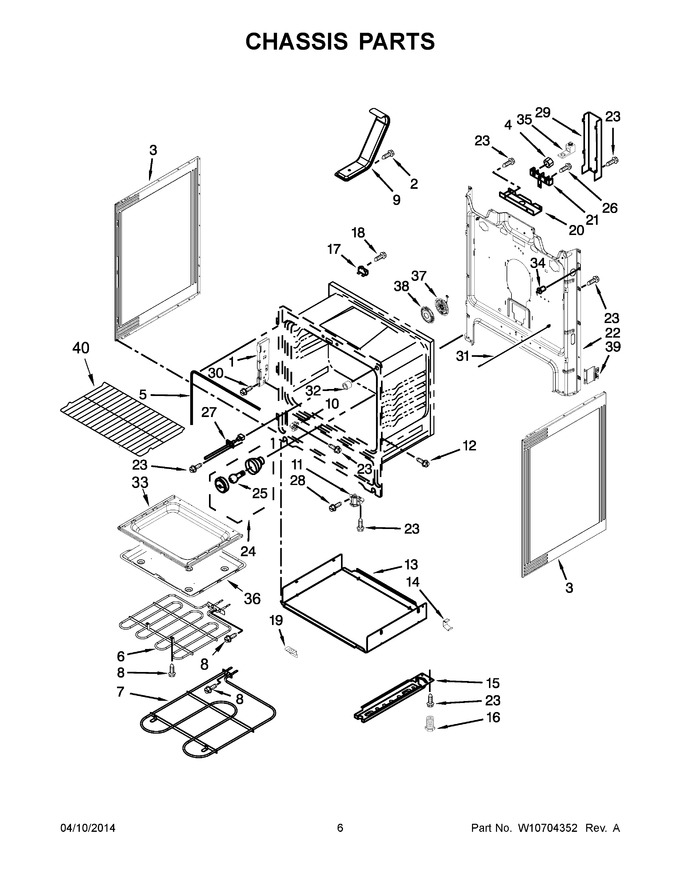

04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 2 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 182.19 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 160.65 | ||||
| 4 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| 5 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 6 | W11321472 | Element, Broil (Replaces: W10544951) |
|
Immediately | $ 110.84 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10289097) |
|
Immediately | $ 68.47 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 9 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 236.70 | ||||
| 10 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 13 | W10726740 | Shield, Heat (Replaces: W10289099) |
|
$ 130.51 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 15 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 15 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 19 | W10035900 | Support, Oven Bottom |
|
$ 12.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 31.65 | ||||
| 22 | W10273169 | Back, Main |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10565174) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 125.64 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 31 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 60.18 | ||||
| 32 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 33 | W10789865 | Bottom, Oven (Replaces: W10289079) |
|
$ 199.10 | |||||
| 34 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 146.71 | ||||
| 35 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 7.98 | |||||
| 36 | W11379357 | Pan, Bake (Replaces: W10346147) |
|
Immediately | $ 74.57 | ||||
| 37 | W11527111 | Fan, Convection (Replaces: W10617485) |
|
Immediately | $ 148.29 | ||||
| 38 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 69.90 | ||||
| 39 | W10273002 | Bracket, Oven Support |
|
$ 68.71 | |||||
| 40 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 120.31 | ||||
| NI | WPW10194393 | Insulation, Wrap (Replaces: W10194393) |
|
$ 116.24 | |||||
| NI | WPW10225524 | Insulation, Back (Replaces: W10225524) |
|
$ 103.21 | |||||
| NI | WPW10225523 | Insulation, Bottom Adapter Kit (Replaces: W10225523) |
|
$ 108.23 | |||||
| NI | 4820F015-59 | Insulation, Strap |
|
$ 8.81 |
