View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts

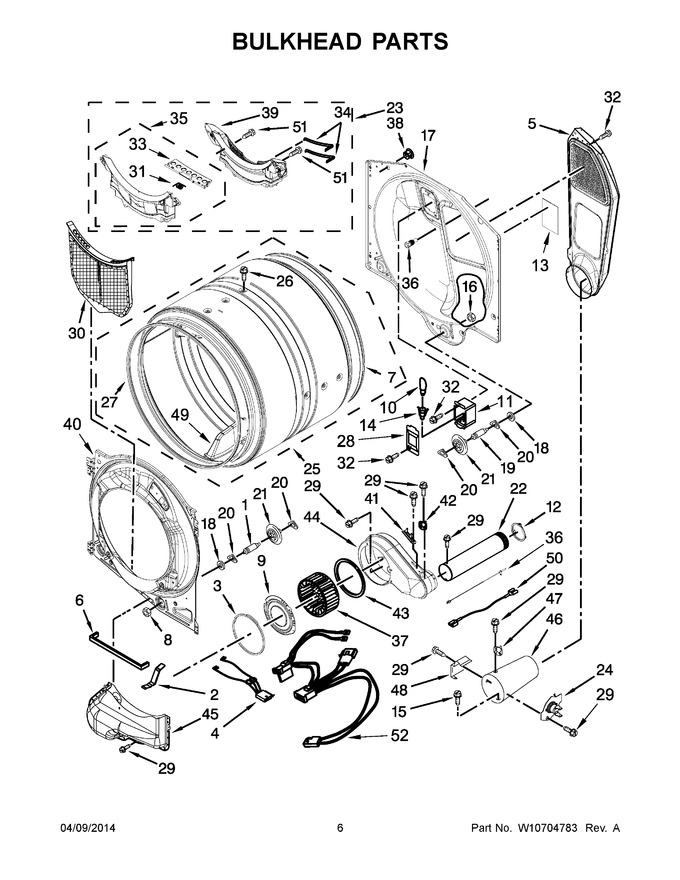

04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller ? Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | W10414388 | Clip, Lint Duct |
|
$ 13.10 | |||||
| 3 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 20.15 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.06 | ||||
| 5 | WPW10293765 | Assembly, Air Duct (Replaces: W10295533) |
|
$ 319.99 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 26.13 | ||||
| 7 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | W10211901 | Assembly, Collar |
|
$ 84.67 | |||||
| 10 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 11 | 8578825 | Bracket, Drum Light |
|
$ 19.73 | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| 13 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 14 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 106.91 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 234.13 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 125.46 | ||||
| 23 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 301.98 | ||||
| 24 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 65.26 | ||||
| 25 | W10508188 | Assembly, Drum (complete) |
|
$ 356.95 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 20.36 | ||||
| 28 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 29 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 30 | W11758174 | Screen, Lint (white) (Replaces: W10516085) |
|
Immediately | $ 48.51 | ||||
| 31 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 99.23 | |||||
| 32 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 33 | W11156832 | Door, Lint Screen (Replaces: W10672680) |
|
Immediately | $ 63.71 | ||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.25 | ||||
| 35 | W10905013 | Assembly, Housing And Door (Replaces: W10672681) |
|
$ 203.72 | |||||
| 36 | W11396709 | Thermistor, Gas Inlet (Replaces: W10623852) |
|
Immediately | $ 78.60 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 73.78 | ||||
| 38 | 8529007 | Plug, Rear Bulkhead |
|
$ 70.98 | |||||
| 39 | W11125442 | Grill, Outlet (Replaces: W10672682) |
|
$ 212.80 | |||||
| 40 | W10459180 | Bulkhead, Front |
|
$ 322.07 | |||||
| 41 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 134.72 | ||||
| 45 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 197.73 | |||||
| 46 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 47 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 128.29 | ||||
| 48 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 49 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 35.96 | |||||
| 50 | W10525140 | Jumper, Tco High Limit |
|
- | |||||
| 51 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 52 | W10708958 | Harness, Gas (Replaces: W10468426) |
|
$ 144.46 |
