SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

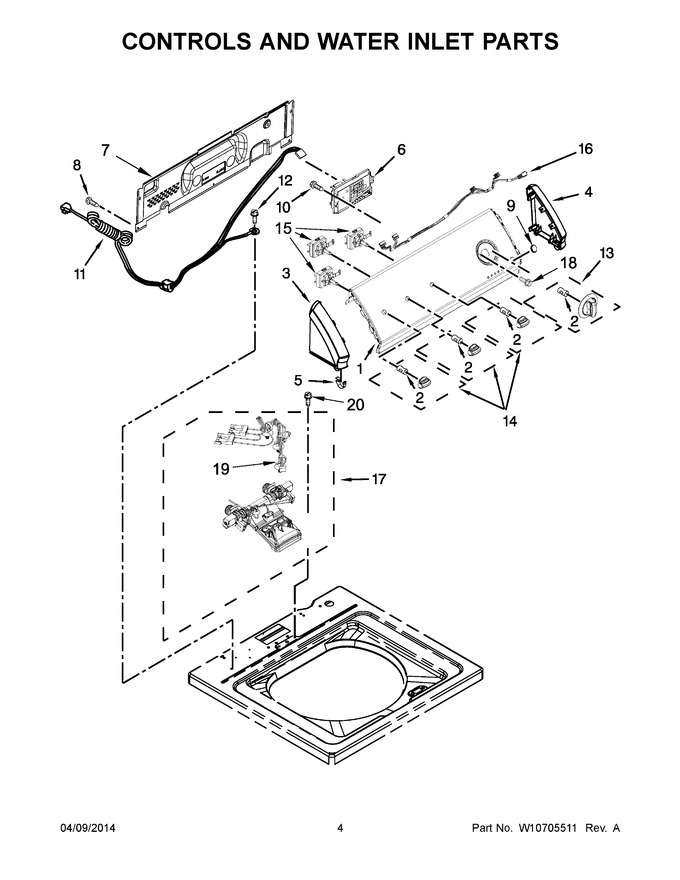

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10607396		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8559502		Endcap Assembly, Left Hand (white)   (Replaces: 8559502)				$ 65.69
4	WP8559501		Endcap Assembly, Right Hand (white)   (Replaces: 8559501)				$ 65.49
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10671333		Control Unit Assembly		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	W10272474		Pushbutton, Start		Appelez-nous	-
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 147.07
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W10317457		Knob, Timer Assembly (grey)		Appelez-nous	-
14	W10317458		Knob, Control Assembly (grey)		Appelez-nous	-
15	WPW10285512		Temperature Control   (Replaces: W10285512)			Immediately	$ 171.42
16	W10291183		Harness, Upper				$ 140.44
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 84.60
18	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
19	W10876654		Harness, Valve   (Replaces: W10423127)				$ 175.43
20	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
