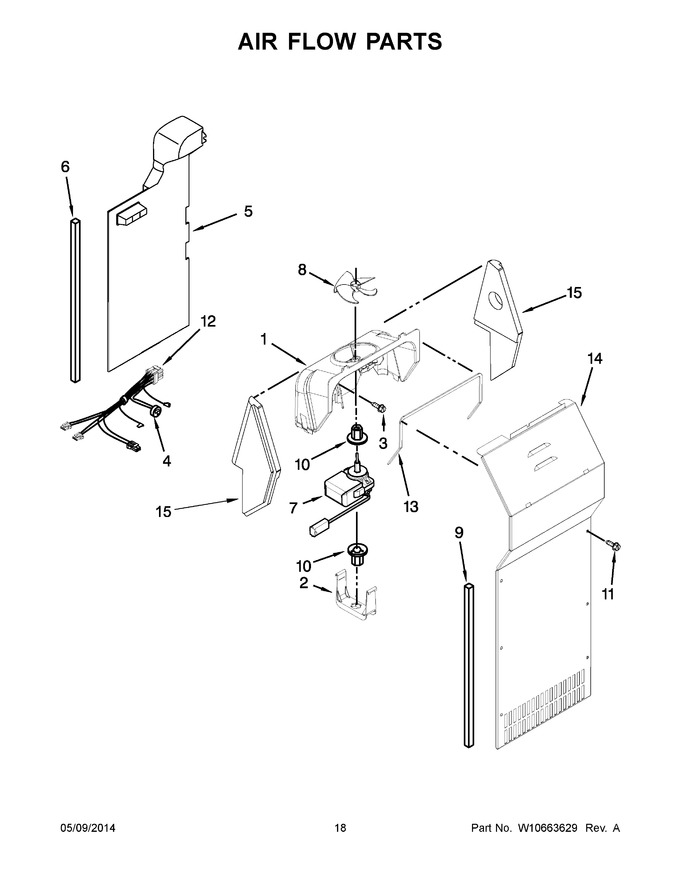

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 305.49 | ||||
| 2 | W11700295 | Retainer, Fan Motor (Replaces: W10188846) |
|
$ 20.97 | |||||
| 3 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10225581) |
|
Immediately | $ 45.69 | ||||
| 5 | W10166220 | Air Duct Freezer |
|
$ 91.83 | |||||
| 6 | 4388500 | Gasket (Replaces: W10252476) |
|
$ 85.42 | |||||
| 7 | W11780227 | Motor, Fan (Replaces: W10236142) |
|
Immediately | $ 134.19 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 9 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 78.25 | ||||
| 10 | WP2176759 | Grommet, Motor (Replaces: 2176759) |
|
$ 7.34 | |||||
| 11 | 4389654 | Screw (Replaces: 8281159) |
|
$ 13.12 | |||||
| 12 | W11225843 | Harness, Fan Tube Evaporator (Replaces: W10297480) |
|
$ 87.17 | |||||
| 13 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 78.25 | ||||
| 14 | W11429207 | Cover, Evaporator (Replaces: W10463012) |
|
$ 54.81 | |||||
| 15 | 4388358 | Support, Fan Scroll (left Hand) (Replaces: 2203596) |
|
$ 29.45 | |||||
| 15 | 4388358 | Support, Fan Scroll (right Hand) (Replaces: 2203595) |
|
$ 29.45 |
