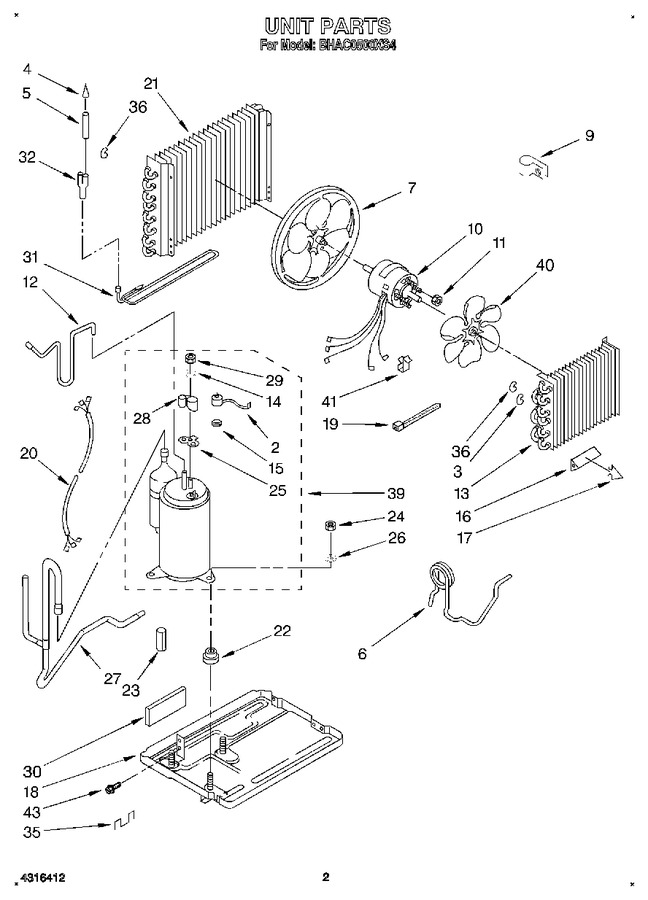

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP1161170		Overload (production)   (Replaces: 1156449)				$ 84.72
2	WP1161170		Overload (production)   (Replaces: 1161170)				$ 84.72
3	708531		Bend, Return (13)		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	950855		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	1161552		Tube, Restrictor		Appelez-nous	-
7	1158524		Blade, Fan		Appelez-nous	-
9	855930		Clamp, Tube		Appelez-nous	-
10	1160987		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	1159180		Tube, Discharge		Appelez-nous	-
13	1157931		Evaporator		Appelez-nous	-
14	950037		Gasket		Appelez-nous	-
15	1155568		Spring, Overload		Appelez-nous	-
16	996773		Anticipator		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	1157926		Base		Appelez-nous	-
19	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
20	484136		Harness, Wiring		Appelez-nous	-
21	1157934		Condenser		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1162344		Dampener-5/16		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	1155570		Gasket, Terminal Cover		Appelez-nous	-
26	489108		Washer (3)		Appelez-nous	-
27	1163995		Tube, Suction		Appelez-nous	-
28	1155569		Cover, Terminal		Appelez-nous	-
29	WP950027		Nut Hex 5 - 8 Mm.   (Replaces: 950027)				$ 5.20
30	1162616		Seal, Anti-rub		Appelez-nous	-
31	1163963		Tube, Condenser Extension		Appelez-nous	-
32	947364		Tube, Flow Divider		Appelez-nous	-
35	949634		Clip, Mtg (2) (cabinet-front)		Appelez-nous	-
36	708532		Bend, Return (4)		Appelez-nous	-
39	1161180		Compressor Assembly		Appelez-nous	-
40	1160094		Blade, Fan		Appelez-nous	-
41	852451		Clamp, Wiring		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
	LIT950222		Wiring Diagram		Appelez-nous	-
	LIT1159431		Tech Sheet		Appelez-nous	-
	LIT1159801		Guide, Use & Care		Appelez-nous	-
	LIT1161896		Instructions, Installation		Appelez-nous	-
