02 - Cooktop, Burner And Grate Parts

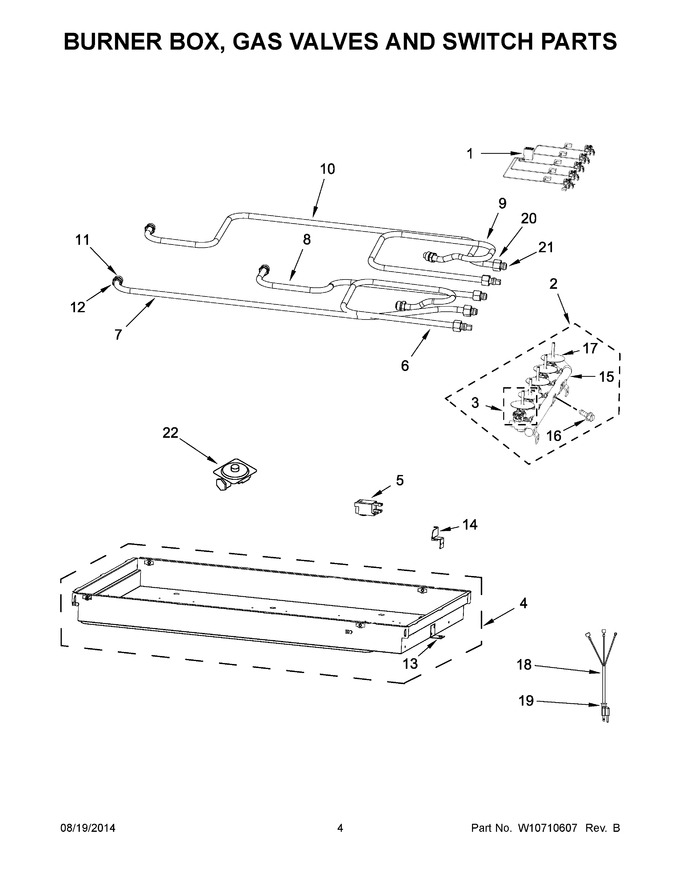

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10623929		Harness, Switch				$ 295.75
2	W10623919		Assembly, Manifold				$ 361.68
3	W10617473		Valve, Gas (left Front, Left Rear, Center)				$ 134.20
4	W10623922		Assembly, Burner Box		Appelez-nous	-
5	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 79.63
6	W10620812		Tubing, Burner (right Front)		Appelez-nous	-
7	WPW10620813		Tubing, Burner (left Front)   (Replaces: W10620813)				$ 97.66
8	WPW10620814		Tubing, Burner (center)   (Replaces: W10620814)				$ 82.17
9	W10620815		Tubing, Burner (right Rear)		Appelez-nous	-
10	W10620816		Tubing, Burner (left Rear)		Appelez-nous	-
11	W10575399		Ferrule, Injector		Appelez-nous	-
12	W10575398		Nut, Injector		Appelez-nous	-
13	8190978		Bracket, Mounting				$ 85.09
14	W10617630		Bracket, Maintop				$ 72.86
15	W10617475		Bracket, Valve		Appelez-nous	-
16	W10617476		Screw, Valves		Appelez-nous	-
17	8190911		Washer (spark Switch)		Appelez-nous	-
18	W10392007		Cord, Power   (Replaces: W10618502)				$ 101.06
19	W10618504		Relief, Strain				$ 30.31
20	8190918		Nut, Compression		Appelez-nous	-
21	8190917		Sleeve, Compresson		Appelez-nous	-
22	WPW10569189		Regulator, Gas   (Replaces: W10569189)			Immediately	$ 238.77
3A	W10617471		Valve, Gas (right Rear)				$ 130.66
3B	W10617472		Valve, Gas (right Front)				$ 137.84
NI	W10623148		Screw, Burner Box Mounting (10-32 X 1" Pan Head)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10623930		Harness, Main				$ 224.93
NI	W10625907		Screw, Burner Box Mounting (8-32 X 3/8" Pan Head)				$ 21.74
NI	W10626014		U-nut, Cooktop Mounting		Appelez-nous	-
NI	W10590568		Kit, Lp Conversion				$ 158.57
NI	W10593221		Kit, Ng High Altitude		Appelez-nous	-
NI	W10593220		Kit, Lp High Altitude		Appelez-nous	-
NI	W10625904		Screw, Cooktop (6-32 X 3/8" Pan Head)				$ 21.70
NI	W10625905		Screw, Manifold Pipe Mounting (8 X 3/8" Pan Head)				$ 18.07

    View Diagram in Separate Window       Print Part List
