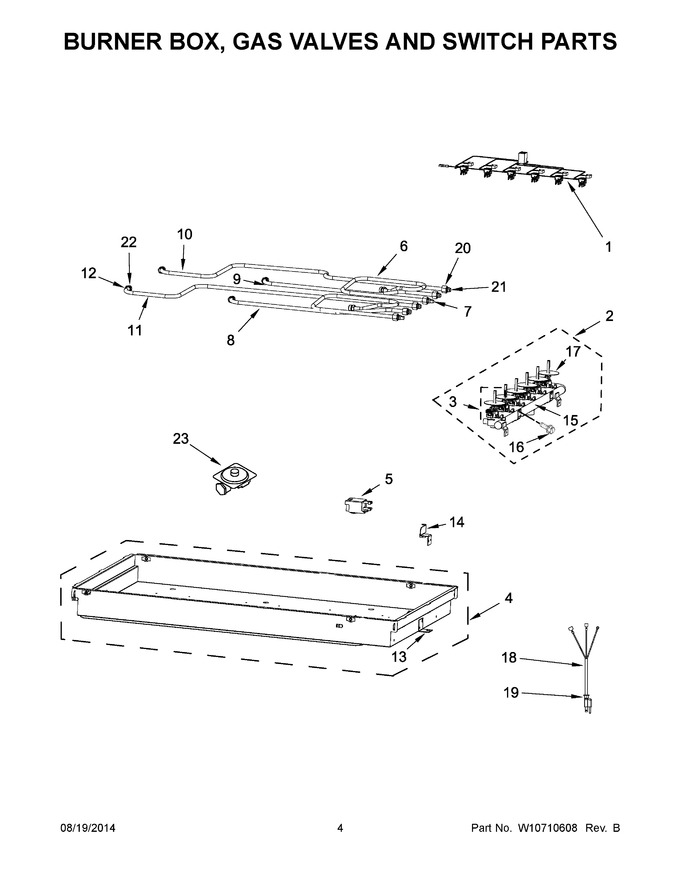

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10617680 | Harness, Switch |
|
Immediately | $ 266.92 | ||||
| 2 | WPW10617391 | Assembly, Manifold (Replaces: W10617391) |
|
$ 446.55 | |||||
| 3 | W10617473 | Valve, Gas (left Front, Left Rear, Center) |
|
$ 134.20 | |||||
| 4 | W10617591 | Assembly, Burner Box |
|
$ 654.83 | |||||
| 5 | W11601369 | Spark Module (Replaces: 8190929) |
|
Immediately | $ 79.63 | ||||
| 6 | WPW10617632 | Tubing, Burner (right Front) (Replaces: W10617632) |
|
$ 84.30 | |||||
| 7 | WPW10617623 | Tubing, Burner (right Rear) (Replaces: W10617623) |
|
$ 97.31 | |||||
| 8 | WPW10617629 | Tubing, Burner (center Front) (Replaces: W10617629) |
|
$ 89.47 | |||||
| 9 | WPW10617622 | Tubing, Burner (center Rear) (Replaces: W10617622) |
|
$ 89.66 | |||||
| 10 | WPW10617621 | Tubing, Burner (left Rear) (Replaces: W10617621) |
|
$ 101.13 | |||||
| 11 | W10617807 | Tubing, Burner (left Front) |
|
Immediately | $ 100.06 | ||||
| 12 | W10575399 | Ferrule, Injector |
|
- | |||||
| 13 | 8190978 | Bracket, Mounting |
|
$ 85.09 | |||||
| 14 | W10617630 | Bracket, Maintop |
|
$ 72.86 | |||||
| 15 | W10617475 | Bracket, Valve |
|
- | |||||
| 16 | W10617476 | Screw, Valves |
|
- | |||||
| 17 | 8190911 | Washer (spark Switch) |
|
- | |||||
| 18 | W10392007 | Cord, Power (Replaces: W10618502) |
|
$ 101.06 | |||||
| 19 | W10618504 | Relief, Strain |
|
$ 30.31 | |||||
| 20 | 8190918 | Nut, Compression |
|
- | |||||
| 21 | 8190917 | Sleeve, Compresson |
|
- | |||||
| 22 | W10575398 | Nut, Injector |
|
- | |||||
| 23 | WPW10569189 | Regulator, Gas (Replaces: W10569189) |
|
Immediately | $ 238.77 | ||||
| 3A | W10617471 | Valve, Gas (right Rear) |
|
$ 130.66 | |||||
| 3B | W10617472 | Valve, Gas (right Front) |
|
$ 137.84 | |||||
| NI | W10625907 | Screw, Burner Box Mounting (8-32 X 3/8" Pan Head) |
|
$ 21.74 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10617681 | Harness, Main |
|
$ 241.78 | |||||
| NI | W10626014 | U-nut, Cooktop Mounting |
|
- | |||||
| NI | W10590568 | Kit, Lp Conversion |
|
$ 158.57 | |||||
| NI | W10593221 | Kit, Ng High Altitude |
|
- | |||||
| NI | W10593220 | Kit, Lp High Altitude |
|
- | |||||
| NI | W10623148 | Screw, Burner Box Mounting (10-32 X 1" Pan Head) |
|
- | |||||
| NI | W10625904 | Screw, Cooktop (6-32 X 3/8" Pan Head) |
|
$ 21.70 | |||||
| NI | W10625905 | Screw, Manifold Pipe Mounting (8 X 3/8" Pan Head) |
|
$ 18.07 |
