01 - Cover Sheet
02 - Top And Console Parts

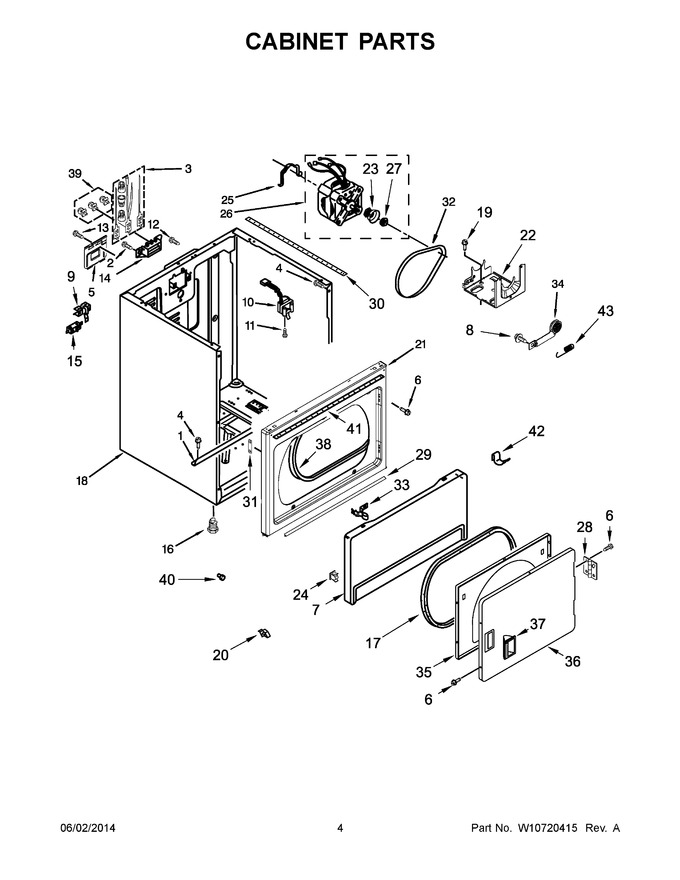

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10236068 | Bracket, Cabinet |
|
$ 22.02 | |||||
| 2 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 3 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 4 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 5 | W10601020 | Cover, Terminal Block |
|
- | |||||
| 6 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 7 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 8 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 9 | W10854043 | Lever, Switch (Replaces: W10083220) |
|
$ 27.41 | |||||
| 10 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 56.37 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 12 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 13 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 14 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 15 | WP8318457 | Switch, Broken Belt (Replaces: 8318457) |
|
$ 39.77 | |||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 17 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 123.42 | |||||
| 18 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 396.15 | |||||
| 19 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 20 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 21 | W10193554 | Panel, Front (white) |
|
- | |||||
| 22 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 23 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 24 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 25 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 26 | W10489550 | Motor, Assembly 60 Hz. |
|
- | |||||
| 27 | W10837625 | Pulley, Motor (Replaces: 3389729) |
|
Immediately | $ 11.49 | ||||
| 28 | WPW10279703 | Door Hinge Assembly (silver) (Replaces: W10279703) |
|
$ 68.25 | |||||
| 29 | W10576519 | Seal, Deflector |
|
- | |||||
| 30 | W10336128 | Seal, Foam |
|
$ 13.57 | |||||
| 31 | W10191265 | Plug, Hinge Hole (white) |
|
$ 41.84 | |||||
| 32 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 34 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 35 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 271.23 | |||||
| 36 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 245.11 | |||||
| 37 | 3389522 | Handle, Door |
|
$ 73.62 | |||||
| 38 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 40 | 693152 | Bumper |
|
$ 10.36 | |||||
| 41 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 35.74 | |||||
| 42 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 43 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 |
