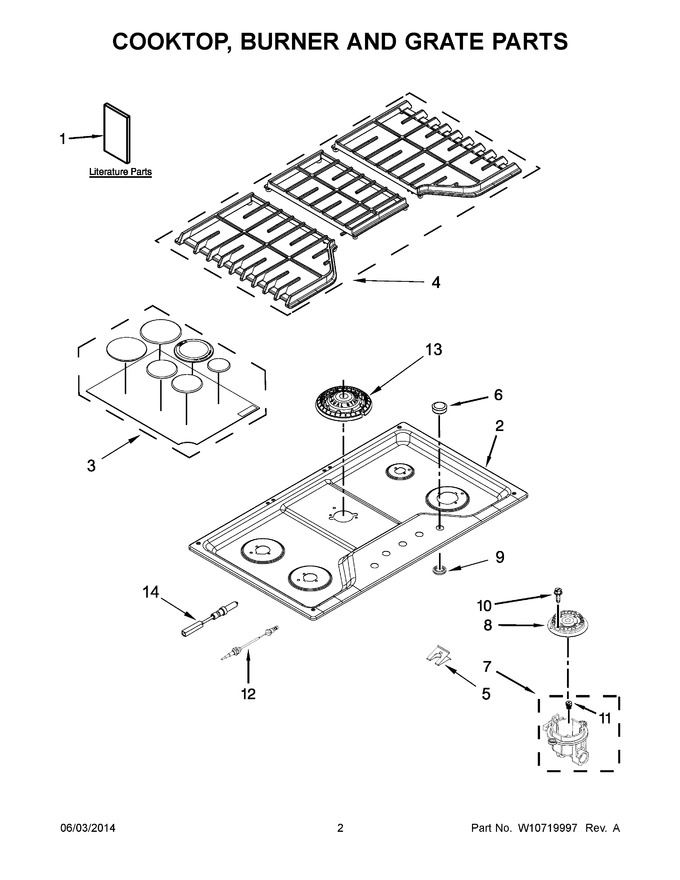

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672375 | Undercounter Install Instructions |
|
- | |||||
| 1 | W10597142 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10597144 | Installation Instructions |
|
- | |||||
| 2 | W10597067 | Cooktop |
|
$ 375.72 | |||||
| 3 | W10833886 | Kit, Burner Cap (black) (Replaces: W10613386) |
|
$ 132.08 | |||||
| 4 | W11334473 | Kit, Grate (black) (Replaces: W10594449) |
|
$ 361.15 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 69.23 | |||||
| 6 | WPW10545849 | Knobs, Cooktop (stainless) (Replaces: W10545849) |
|
Immediately | $ 124.48 | ||||
| 7 | W10597166 | Holder, Orifice (9.1k) (left Front & Right Front) |
|
$ 66.41 | |||||
| 7 | W10611441 | Holder, Orifice (17k) (center) |
|
$ 68.10 | |||||
| 7 | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 34.93 | |||||
| 7 | W10613381 | Holder, Orifice (10k) (left Rear) |
|
$ 64.85 | |||||
| 8 | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 94.73 | |||||
| 8 | WP8286814 | Head, Burner (left Front, Left Rear & Right Front) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| 9 | W11206740 | Grommet (Replaces: W10625915) |
|
$ 8.19 | |||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.51 | ||||
| 11 | W10652710 | Orifice (left Front & Right Front) |
|
$ 24.54 | |||||
| 11 | W10652706 | Orifice (center, Simmer) |
|
$ 89.96 | |||||
| 11 | W10791073 | Orifice (center, Main) (Replaces: W10609592) |
|
$ 84.11 | |||||
| 11 | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 81.27 | |||||
| 11 | W10791076 | Orifice (left Rear) (Replaces: W10151347) |
|
$ 90.15 | |||||
| 12 | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 54.80 | ||||
| 12 | W11507531 | Wiring, Electrode (left Front & Right Front) (Replaces: W10541842) |
|
$ 54.74 | |||||
| 13 | W10811599 | Spreader, Flame (Replaces: W10611434) |
|
$ 195.46 | |||||
| 14 | W10852959 | Electrode (stack) (center) (Replaces: W10611438) |
|
$ 69.39 |
