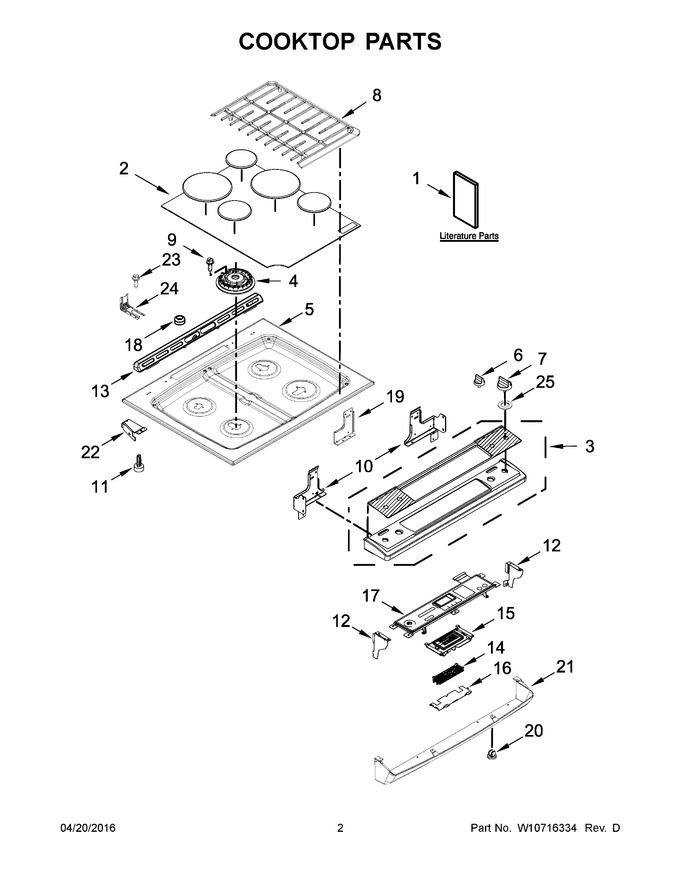

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665256 | Instructions, Installation |
|
- | |||||
| 2 | WPW10479988 | Kit, Burner Cap (black) (Replaces: W10479988) |
|
$ 221.78 | |||||
| 3 | W10728512 | Console (black) (Replaces: W10547076) |
|
$ 304.63 | |||||
| 4 | WPW10256028 | Spreader, Flame (left Front & Right Front) (Replaces: W10256028) |
|
Immediately | $ 141.31 | ||||
| 5 | W10712112 | Cooktop (black) (Replaces: W10474659) |
|
$ 833.21 | |||||
| 6 | W10569590 | Knob, Mini (black) |
|
$ 35.70 | |||||
| 7 | W11684561 | Knob (black) (Replaces: W10569583) |
|
$ 39.91 | |||||
| 8 | W11175813 | Kit, Grate (black) (Replaces: W10432521) |
|
$ 328.43 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 11 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 15.85 | ||||
| 12 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 13 | W11256338 | Trim, Vent (black) (Replaces: W10577781) |
|
$ 185.00 | |||||
| 14 | W11050551 | Control, Electronic (mrc2) (Replaces: W10453986) |
|
$ 474.88 | |||||
| 15 | WPW10603098 | Assembly, Display (Replaces: W10603098) |
|
Immediately | $ 233.58 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 17 | W10728529 | Assembly, Active Overlay (black) (Replaces: W10665503) |
|
$ 304.96 | |||||
| 18 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 19 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 20 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 21 | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 146.04 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 24 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 25 | W11131701 | Bushing (black) (Replaces: W10739036) |
|
$ 20.94 | |||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 12A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 13A | W10577780 | Trim, Vent (white) |
|
$ 205.81 | |||||
| 17A | W10728525 | Assembly, Active Overlay (white) (Replaces: W10665504) |
|
$ 294.87 | |||||
| 17B | W10728523 | Assembly, Active Overlay (stainless) (Replaces: W10145866) |
|
$ 281.42 | |||||
| 1A | W10665261 | Guide, Use & Care |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | W10665231 | Wiring Diagram |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1G | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 1H | W11126047 | Kit, Lp Conversion (burners) (Replaces: W10566083) |
|
Immediately | $ 113.85 | ||||
| 1I | W11087486 | Kit, Lp Conversion (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 | ||||
| 21A | W10570528 | Console, Lower Panel (white) |
|
$ 238.47 | |||||
| 21B | W10581493 | Console, Lower Panel (stainless) |
|
$ 126.41 | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 2A | W10479987 | Kit, Burner Cap (wetstone) |
|
$ 99.60 | |||||
| 3A | W10728510 | Console (white) (Replaces: W10547077) |
|
$ 263.14 | |||||
| 3B | W10547078 | Console (stainless) |
|
- | |||||
| 4A | W10836467 | Spreader, Flame (left Rear) (Replaces: W10464795) |
|
$ 42.87 | |||||
| 4B | WPW10256025 | Spreader, Flame (right Rear & Center) (Replaces: W10256025) |
|
Immediately | $ 81.96 | ||||
| 5A | W10474661 | Cooktop (white) |
|
- | |||||
| 6A | W10569591 | Knob, Mini (white) |
|
- | |||||
| 6B | W11129406 | Knob, Mini (stainless) (Replaces: W10680400) |
|
Immediately | $ 20.30 | ||||
| 7A | W10569584 | Knob (white) |
|
$ 36.86 | |||||
| 7B | W10818230 | Knob (stainless) (Replaces: W10569585) |
|
Immediately | $ 22.21 | ||||
| 8A | W10432522 | Kit, Grate (wetstone) |
|
$ 304.58 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W10580229 | Wire, Ground |
|
$ 34.40 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | W10580281 | Harness, Main |
|
$ 265.99 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11198972 | Harness, Bake/broil (Replaces: W10754419) |
|
$ 32.26 |
