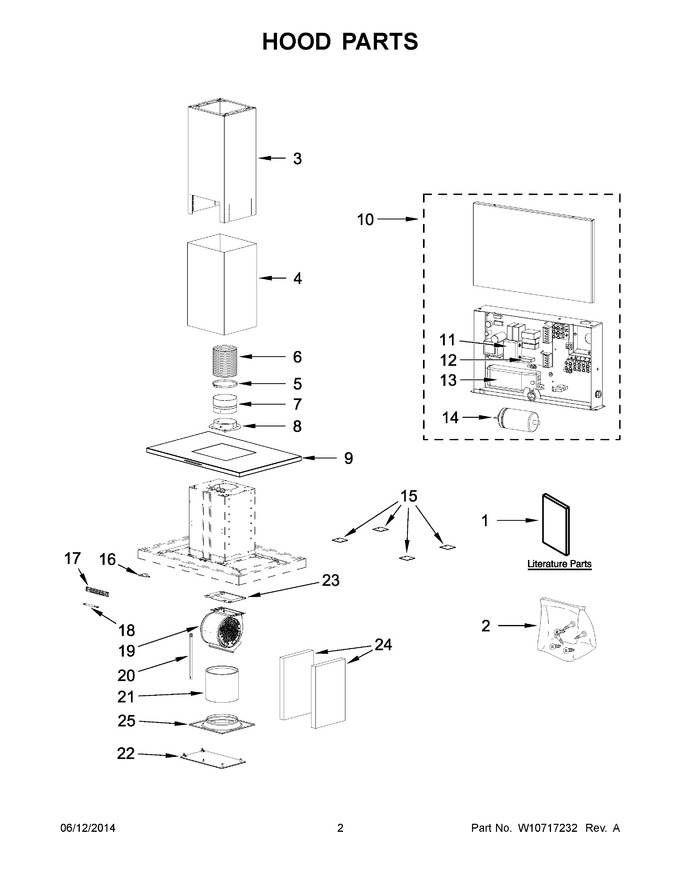

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10640312 | Use And Care Guide |
|
- | |||||
| 2 | W10711065 | Hardware, Installation |
|
$ 208.29 | |||||
| 3 | W10711066 | Chimney, Upper |
|
- | |||||
| 4 | W10711067 | Chimney, Lower |
|
$ 641.78 | |||||
| 5 | N/P | Clamp, Hose (not Serviced) |
|
- | |||||
| 6 | W10712339 | Vent, Metal |
|
- | |||||
| 7 | W10712349 | Damper, Hood |
|
$ 206.40 | |||||
| 8 | W10712348 | Plate, Mounting |
|
$ 255.37 | |||||
| 9 | W10711025 | Cover, Top Panel |
|
- | |||||
| 10 | WPW10711016 | Board, Power (Replaces: W10711016) |
|
$ 222.38 | |||||
| 11 | W10711069 | Filter, Emi |
|
$ 278.97 | |||||
| 12 | W10711017 | Fuse |
|
$ 33.75 | |||||
| 13 | W10711070 | Transformer |
|
$ 276.19 | |||||
| 14 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 15 | W10711014 | Lamp, Led |
|
- | |||||
| 16 | W10711019 | Sensor |
|
- | |||||
| 17 | W10711010 | Panel, Control |
|
$ 265.64 | |||||
| 18 | W10715802 | Damper |
|
- | |||||
| 19 | W10711031 | Motor, Fan |
|
$ 354.63 | |||||
| 20 | W10715801 | Wrench, Installation |
|
- | |||||
| 21 | W10292887 | Filter, Grease |
|
$ 285.75 | |||||
| 22 | W10711064 | Panel, Perimetric |
|
- | |||||
| 23 | N/P | Plate, Motor (not Serviced) |
|
- | |||||
| 24 | W10712341 | Insulation, Sound |
|
- | |||||
| 25 | W10711059 | Support, Filter |
|
- | |||||
| NI | W10272069 | Accessories, Filter, Charcoal |
|
$ 216.51 | |||||
| NI | W10446915 | Accessories, Kit, 6`` Makeup Air |
|
$ 316.52 | |||||
| NI | W10685950 | Accessories, Adapter, 6`` To 8`` Vent Duct (for 8`` [20.3 Cm] Duct Installations) |
|
$ 81.31 | |||||
| NI | W10685946 | Accessories, Kit, Vented Chimney Extension ((for 9` 1`` [2.77 M] To 11` [3.35 M] Ceilings) |
|
- | |||||
| NI | W10646863 | Accessories, Kit, Vented Chimney Extension (for 10` 2`` [3.1 M] To 12` [3.66 M] Ceilings) |
|
- | |||||
| NI | W10646865 | Accessories, Kit, Recirculation Chimney Extension (for 7` 9`` [2.36 M] To 10` 4`` [3.15 M] Ceilings) |
|
- | |||||
| NI | W10646866 | Accessories, Kit, Recirculating Chimney Extension (for 9` 1`` [2.77 M] To 11` [3.35 M] Ceilings) |
|
- | |||||
| NI | W10685947 | Accessories, Kit, Recirculating Chimney Extension (for 10` 2`` [3.1 M] To 12` [3.66 M] Ceilings) |
|
- |
