01 - Cover Sheet

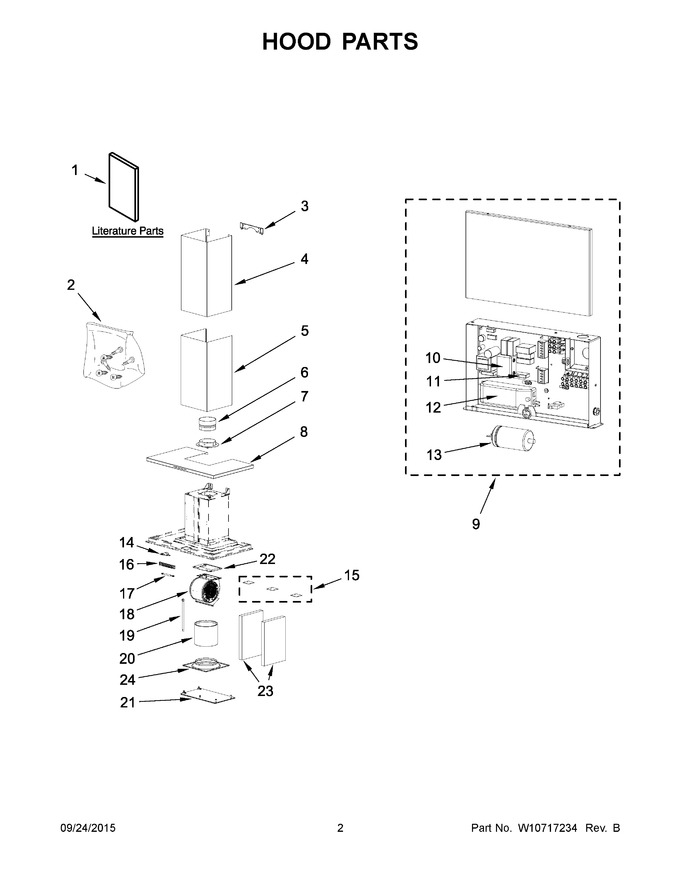

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10640311		Use And Care Guide		Appelez-nous	-
2	W10717295		Hardware, Installation				$ 147.80
3	W10717297		Bracket, Wall				$ 25.26
4	W10711071		Chimney, Upper				$ 292.96
5	W10711072		Chimney, Lower				$ 404.75
6	W10712349		Damper, Hood				$ 206.40
7	W10712348		Plate, Mounting				$ 255.37
8	W10716159		Cover, Top Panel		Appelez-nous	-
9	WPW10711016		Board, Power   (Replaces: W10711016)				$ 222.38
10	W10711069		Filter, Emi				$ 278.97
11	W10711017		Fuse				$ 33.75
12	W10711070		Transformer				$ 276.19
13	8186677		Capacitor (25 Mf)				$ 212.19
14	W10711019		Sensor		Appelez-nous	-
15	W10711014		Lamp, Led		Appelez-nous	-
16	W10711010		Panel, Control				$ 265.64
17	W10715802		Damper		Appelez-nous	-
18	W10711031		Motor, Fan				$ 354.63
19	W10715801		Wrench, Installation		Appelez-nous	-
20	W10292887		Filter, Grease				$ 285.75
21	W10716164		Panel, Perimetric		Appelez-nous	-
22	N/P		Plate, Motor (not Serviced)		Appelez-nous	-
23	W10712341		Insulation, Sound		Appelez-nous	-
24	W10711059		Support, Filter		Appelez-nous	-
NI	W10272069		Accessories, Filter, Charcoal				$ 216.51
NI	W10446915		Accessories, Kit, 6" Makeup Air				$ 316.52
NI	W10685950		Accessories, Adapter, 6" To 8" Vent Duct (for 8" [20.3 Cm] Duct Installations)				$ 81.31
NI	W10646864		Accessories, Kit, Vented Chimney Extension (for 9' 6" [2.89 M] To 12' [3.66 M] Ceilings)				$ 224.99
NI	W10685949		Accessories, Kit, Recirculation Chimney Extension (for 7' 9" [2.36 M] To 10' 4" [3.15 M] Ceilings)				$ 1,351.34
NI	W10686362		Accessories, Kit, Recirculation Chimney Extension (for 9' 6" [2.89 M] To 12' [3.66 M] Ceilings)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
