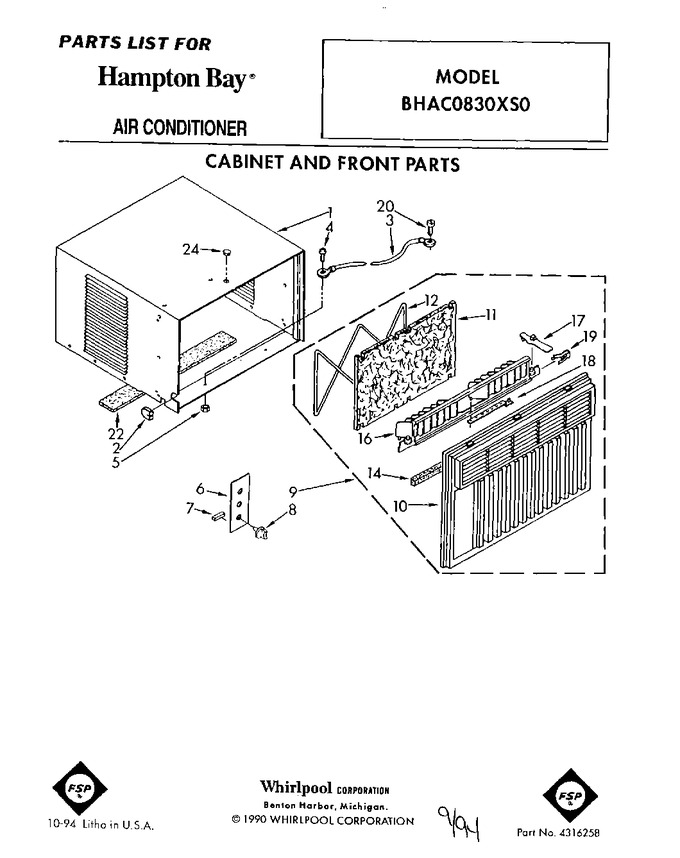

01 - Cabinet And Front


02 - Unit , Literature


03 - Air Flow And Control


04 - Accessory Kit


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157350		Cabinet		Appelez-nous	-
2	647849		Grommet, Cable		Appelez-nous	-
3	857017		Wire, Ground		Appelez-nous	-
4	488853		Screw, Mach 8-32 X 3/8		Appelez-nous	-
5	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
6	1159344		Escutcheon, Control		Appelez-nous	-
7	470036		Spacer, Plate (3)		Appelez-nous	-
8	953054		Knob, Control		Appelez-nous	-
9	953021		Front Assembly, Cabinet (complete)		Appelez-nous	-
10	953017		Front, Cabinet		Appelez-nous	-
11	648008		Filter, Air		Appelez-nous	-
12	476707		Retainer, Filter		Appelez-nous	-
14	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
16	953069		Louver, Vertical		Appelez-nous	-
17	953159		Handle, Vertical Louver		Appelez-nous	-
18	953067		Link, Vert. Louver (2)		Appelez-nous	-
19	641484		Spring, Detent (2)				$ 150.14
20	488854		Screw, St 8-32 X 3/8		Appelez-nous	-
22	647854		Seal, Cabinet Bottom		Appelez-nous	-
22	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 12.55
24	1157126		Cover, Hole		Appelez-nous	-
