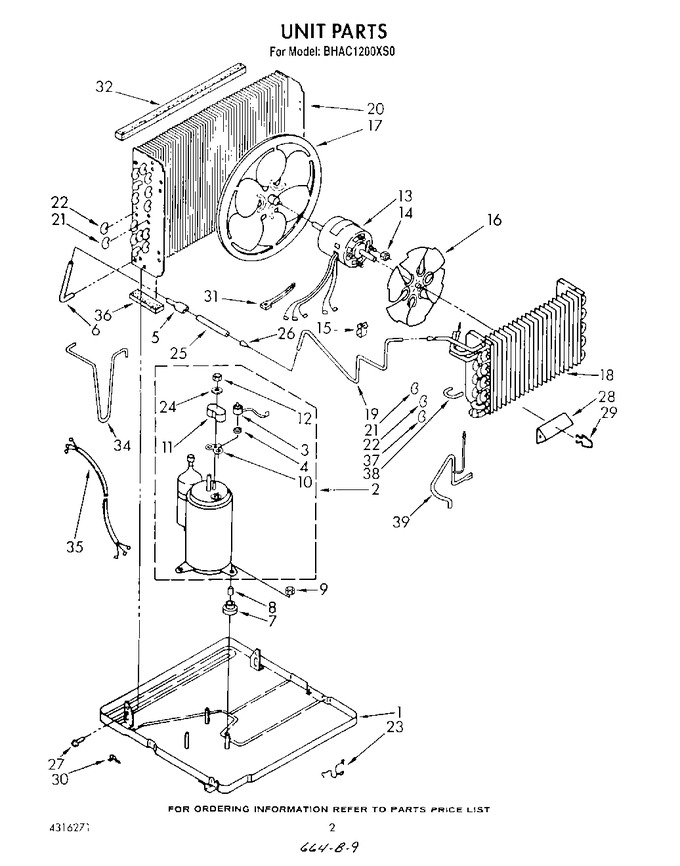

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950019		Base		Appelez-nous	-
2	819117		Compressor		Appelez-nous	-
3	1155700		Overload		Appelez-nous	-
4	950032		Spring, Overload		Appelez-nous	-
5	947364		Tube, Flow Divider		Appelez-nous	-
6	1155580		Tube, 90~ Connect		Appelez-nous	-
7	WP950021		Grommet, Compressor Mounting (3)   (Replaces: 950021)				$ 78.99
8	950020		Sleeve, Compressor Mounting (3)		Appelez-nous	-
9	858121		Nut, Lock (3)		Appelez-nous	-
10	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
11	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
12	950037		Nut		Appelez-nous	-
13	947852		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
15	852451		Clamp, Cable		Appelez-nous	-
16	947533		Blade, Fan (evaporator)		Appelez-nous	-
17	997904		Blade, Fan (condenser)		Appelez-nous	-
18	1156743		Evaporator		Appelez-nous	-
19	1156745		Tube, Restrictor (2)		Appelez-nous	-
20	1156741		Condenser		Appelez-nous	-
21	708532		Bend, Return Condenser (4) Evaporator (14)		Appelez-nous	-
22	708531		Bend, Return Condenser (16) Evaporator (5)		Appelez-nous	-
23	949634		Clip, Mtg. (2) (base To Front)		Appelez-nous	-
24	WP950027		Washer   (Replaces: 950027)				$ 5.20
25	950825		Tube, Outlet (includes Illus 4)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	488481		Screw (repair) No.10 X 3/8a		Appelez-nous	-
27	WP489069		Screw, Sm No.8 X 1/2a (7)   (Replaces: 488480)			Immediately	$ 7.56
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	642684		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 612805)				$ 7.47
32	948090		Seal, Condenser Top		Appelez-nous	-
34	1155564		Tube, Discharge		Appelez-nous	-
35	484136		Harness, Wiring		Appelez-nous	-
36	WP854334		Condenser, Bottom   (Replaces: 859600)				$ 12.55
37	1158407		Bend Return		Appelez-nous	-
38	1156533		Bend Return		Appelez-nous	-
39	1155701		Tube, Suction		Appelez-nous	-
	LIT1159275		Sheet, Tech		Appelez-nous	-
	LIT4316271		List, Repair Parts		Appelez-nous	-
	LIT1155974		Instruction, Installation		Appelez-nous	-
	LIT1159879		Buy Guide Label		Appelez-nous	-
	LIT1158169		Guide, Operation		Appelez-nous	-
	LIT950222		Wiring Diagram		Appelez-nous	-
