01 - Cabinet And Front


02 - Unit, Lit/optional


03 - Air Flow


04 - Accessories


05 - Optional

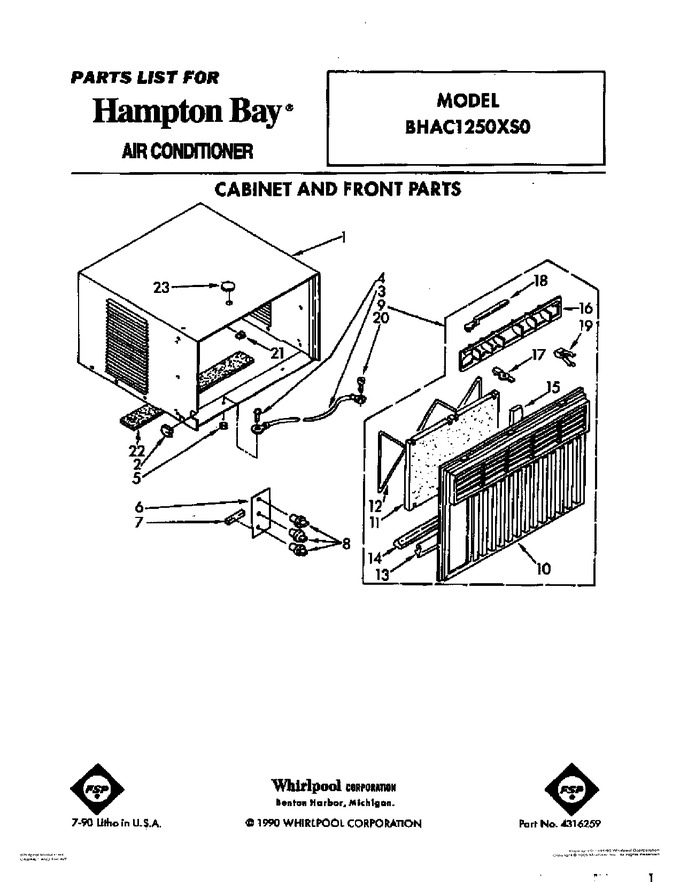

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157350		Cabinet		Appelez-nous	-
2	647849		Grommet, Cable		Appelez-nous	-
3	857017		Wire, Ground		Appelez-nous	-
4	488853		Screw, Mach 8-32 X 3/8		Appelez-nous	-
5	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
6	1159344		Plate, Escutcheon		Appelez-nous	-
7	470036		Spacer, Plate (3)		Appelez-nous	-
8	953054		Knob, Control (3)		Appelez-nous	-
9	953021		Front, Cabinet (complete Assembly)		Appelez-nous	-
10	953017		Front, Cabinet		Appelez-nous	-
11	648008		Filter		Appelez-nous	-
12	476707		Retainer, Filter		Appelez-nous	-
13	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
14	647914		Seal, Cabinet Front		Appelez-nous	-
15	649198		Seal		Appelez-nous	-
16	953068		Louver, Vertical		Appelez-nous	-
17	953159		Handle, Vertical Louver (2)		Appelez-nous	-
18	953067		Link, Vertical Louver		Appelez-nous	-
19	641484		Spring, Dent (2)				$ 150.14
20	488854		Screw, St 8-32 X 3/8		Appelez-nous	-
21	949634		Clip, Cabinet Front (2)		Appelez-nous	-
22	647854		Seal, Cabinet		Appelez-nous	-
22	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 12.55
23	1157126		Cover, Hole Bottom		Appelez-nous	-
