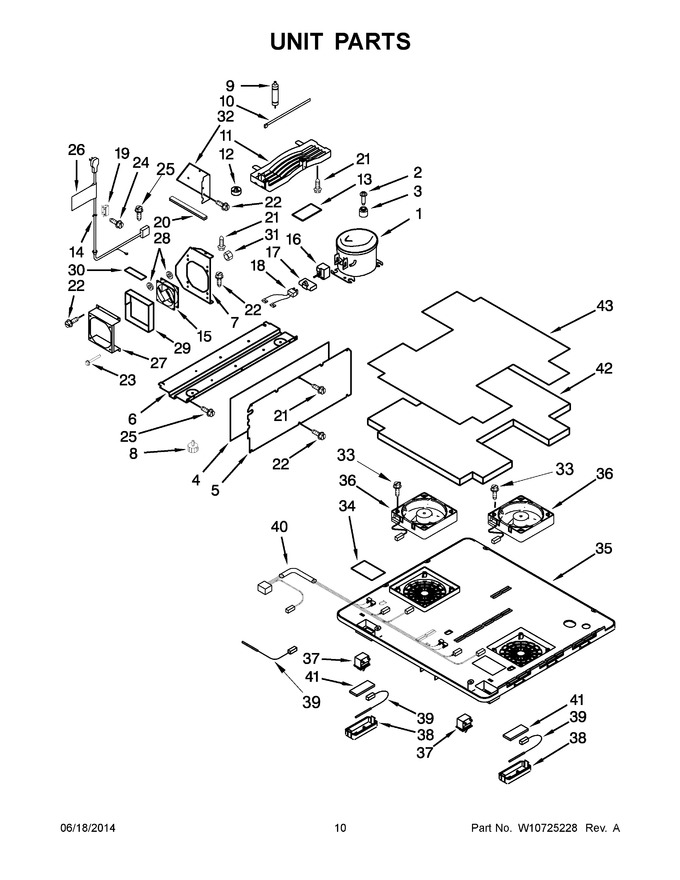

06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201787		Compressor   (Replaces: 4344775)				$ 647.31
2	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
3	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
4	W10204672		Rear Insulation		Appelez-nous	-
5	4344786		Cover, Rear		Appelez-nous	-
6	W10622029		Base Plate, Cabinet		Appelez-nous	-
7	W10204674		Air Baffle				$ 114.91
8	W11106296		Leg. Leveling   (Replaces: 4344763)				$ 17.13
9	W10163273		Drier				$ 93.07
10	4344829		Tie, Cable		Appelez-nous	-
11	W10316689		Drain Pan				$ 147.33
12	W10163276		Trap, Drain				$ 81.12
13	W10163274		Vibration Rubber		Appelez-nous	-
14	WPW10204676		Power Cord   (Replaces: W10204676)				$ 101.72
15	W10204677		Condenser Motor				$ 316.11
16	WP4344776		Relay, Start   (Replaces: 4344776)				$ 159.89
17	4344837		Capacitor		Appelez-nous	-
18	W10287954		Capacitor		Appelez-nous	-
19	W10270517		Clamp, Cord				$ 71.56
20	4344907		Trim, Edge		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344832		Screw		Appelez-nous	-
23	W10270492		Bolt		Appelez-nous	-
24	W10837731		Screw   (Replaces: W10204865)				$ 7.47
25	4344826		Screw, Grille				$ 15.03
26	4344913		Warning Label		Appelez-nous	-
27	W10204687		Fan Cover		Appelez-nous	-
28	W10204688		Fan Bushing		Appelez-nous	-
29	W10204689		Vibration Rubber A		Appelez-nous	-
30	W10204690		Vibration Rubber B		Appelez-nous	-
31	W10270493		Nut		Appelez-nous	-
32	4344773		Bracket, Defrost Timer		Appelez-nous	-
33	W10205061		Screw		Appelez-nous	-
34	W10205062		Terminal Protector		Appelez-nous	-
35	W10622034		Cover, Fan		Appelez-nous	-
36	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 322.47
37	W10721454		Door Switch				$ 37.63
38	W10622036		Sensor Case		Appelez-nous	-
39	WPW10204946		Temp Sensor   (Replaces: W10204946)				$ 90.80
40	W10204947		Wire Harness		Appelez-nous	-
41	W10204948		Sensor Case Seal		Appelez-nous	-
42	W10204952		Insulation		Appelez-nous	-
43	W10205060		Plate Cover		Appelez-nous	-
