SELECT A DIAGRAM

01 - Cover Sheet

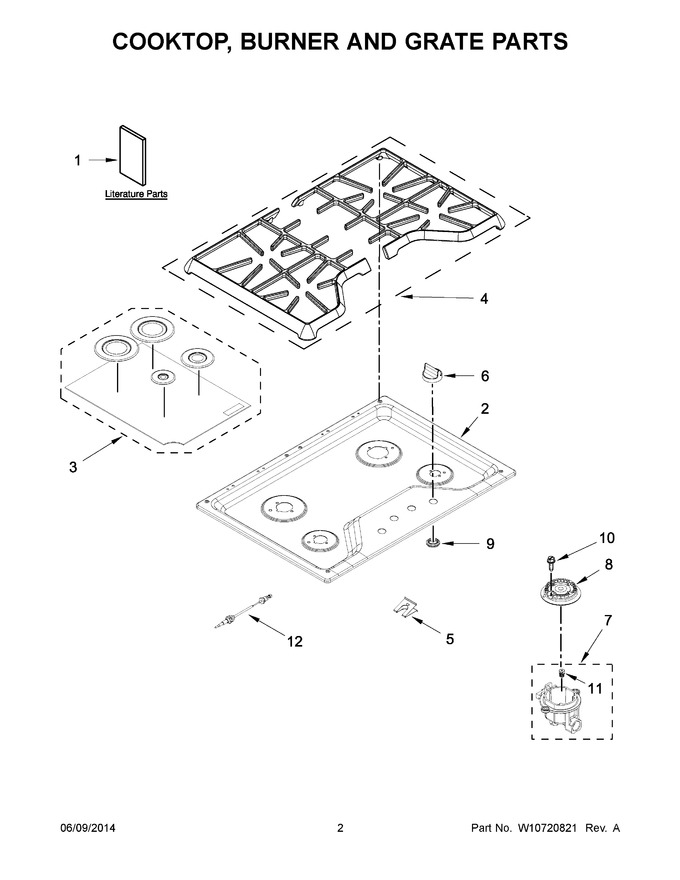

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10597144		Installation Instructions		Appelez-nous	-
1	W10672375		Undercounter Install Instructions		Appelez-nous	-
1	W10648065		Use & Care Guide		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10597071		Cooktop (black)		Appelez-nous	-
2	W10597073		Cooktop (stainless)				$ 380.51
3	WPW10597129		Kit, Burner Cap (black)   (Replaces: W10597129)				$ 114.61
4	W11413073		Kit, Grate (black)   (Replaces: W10594445)				$ 338.23
5	8286863		Spring, Electrode				$ 69.23
6	W10816992		Knobs, Cooktop (stainless)   (Replaces: W10645962)				$ 20.29
7	W10594399		Holder, Orifice (5k) (left Front)				$ 34.93
7	W10597159		Holder, Orifice (12k) (right Front)				$ 65.21
7	W10594402		Holder,orifice (9.1k) (right Rear)				$ 64.85
7	W10609591		Holder, Orifice (15k) (left Rear)				$ 65.13
8	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)			Immediately	$ 112.13
8	WP8286815		Head, Burner (left Front & Rightfront)   (Replaces: 8286815)			Immediately	$ 112.13
8	WP8286813		Head, Burner (left Front)   (Replaces: 8286813)				$ 90.22
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 8.19
10	WP8287059		Screw   (Replaces: 8287059)			Immediately	$ 7.51
11	W10652710		Orifice (right Rear)				$ 24.54
11	W10791079		Orifice (right Front)   (Replaces: W10409144)				$ 84.11
11	W10791073		Orifice (left Rear)   (Replaces: W10609592)				$ 84.11
11	W10791082		Orifice (left Front)   (Replaces: W10652711)				$ 81.27
12	W11507532		Wiring, Electrode (left Rear & Right Rear)   (Replaces: W10541843)			Immediately	$ 54.80
12	W11507531		Wiring, Electrode (left Front & Right Front)   (Replaces: W10541842)				$ 54.74

    View Diagram in Separate Window       Print Part List
