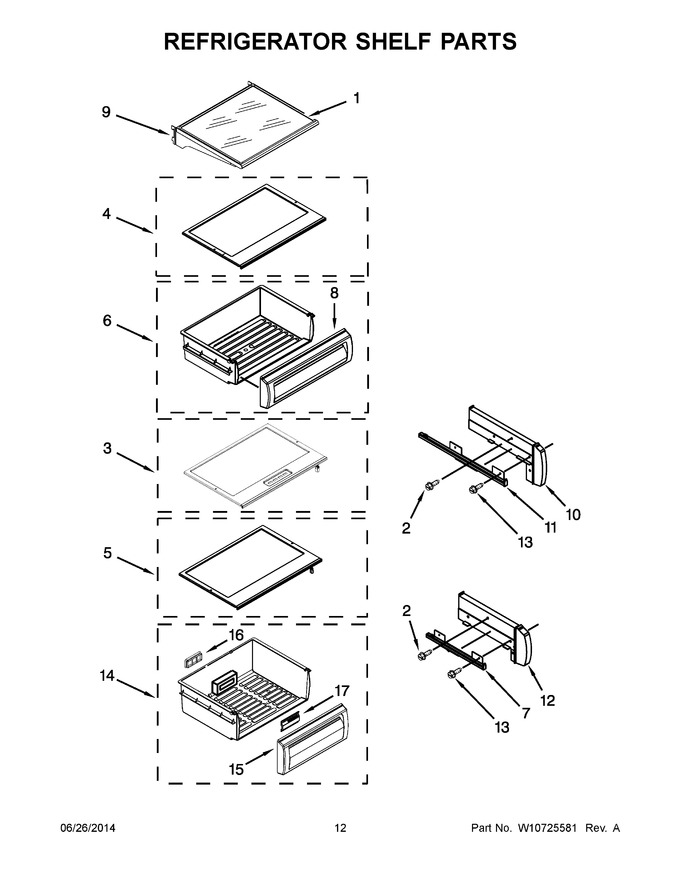

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777984		Assembly, Shelf   (Replaces: W10187535)				$ 193.43
2	W10215666		Screw				$ 8.58
3	W10137286		Assembly, Crisper Cover		Appelez-nous	-
4	W10217204		Assembly, Meat Pan Cover		Appelez-nous	-
5	W10189066		Assembly, Crisper Cover		Appelez-nous	-
6	W10407640		Assembly, Meat Pan		Appelez-nous	-
7	2302955		Slide, Meat Pan (right Hand)				$ 308.86
7	2302954		Slide, Meat Pan (left Hand)				$ 309.14
8	WP2256366		Front, Meat Pan   (Replaces: 2256366)				$ 171.11
9	W10187549		Sidearm, Shelf				$ 269.21
10	W10137277		Spacer, Crisper				$ 67.01
11	2302957		Slide, Crisper (right Hand)				$ 205.50
11	2302956		Slide, Crisper (left Hand)				$ 268.86
12	W10217428		Spacer, Pan		Appelez-nous	-
13	W11830745		Screw (stainless)   (Replaces: 8533929)		Appelez-nous	-
14	W10407638		Assembly, Crisper Pan				$ 95.74
15	2256248		Front, Crisper Pan		Appelez-nous	-
16	2307810		Duct, Deli Pan		Appelez-nous	-
17	2317939		Deflector, Air		Appelez-nous	-
