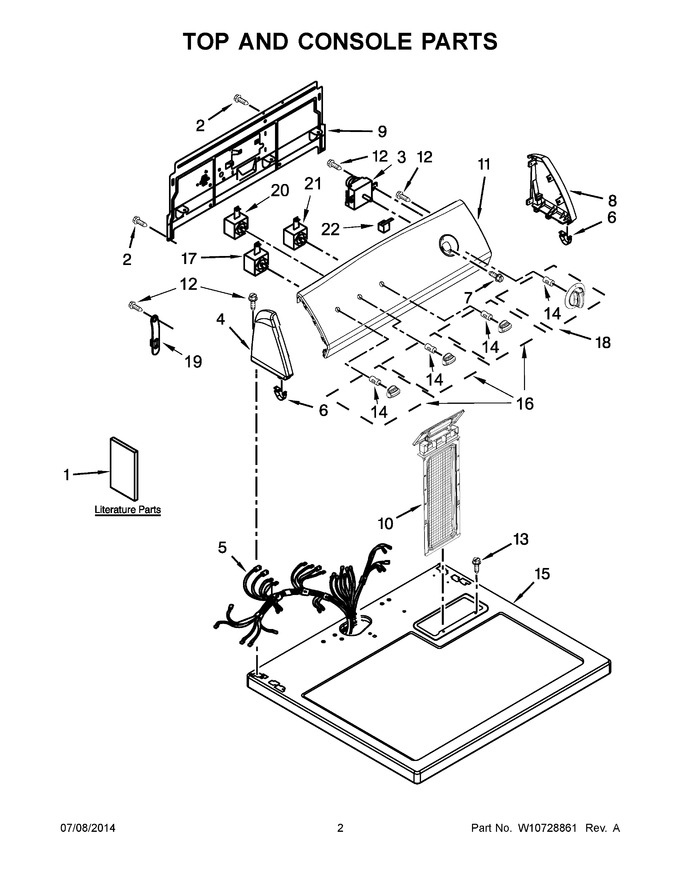

SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10636932		Use And Care Guide		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
3	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 115.30
4	WPW10251358		End Cap (left) (white)   (Replaces: W10251358)				$ 46.28
5	W10640695		Harness, Main		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
7	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
8	WPW10251355		End Cap (right) (white)   (Replaces: W10251355)				$ 46.25
9	W10121161		Panel, Rear Console		Appelez-nous	-
10	W10120998		Screen, Lint   (Replaces: W10596627)				$ 74.66
11	W10598022		Console (white)		Appelez-nous	-
12	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
13	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	8559781		Top (white)		Appelez-nous	-
16	W10317458		Assembly, Push-to-start Knob (grey)		Appelez-nous	-
17	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
18	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.35
20	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 137.51
21	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
22	3952439		Buzzer, Mini		Appelez-nous	-
1A	W10629448		Installation Instructions		Appelez-nous	-
1B	W10660262		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
