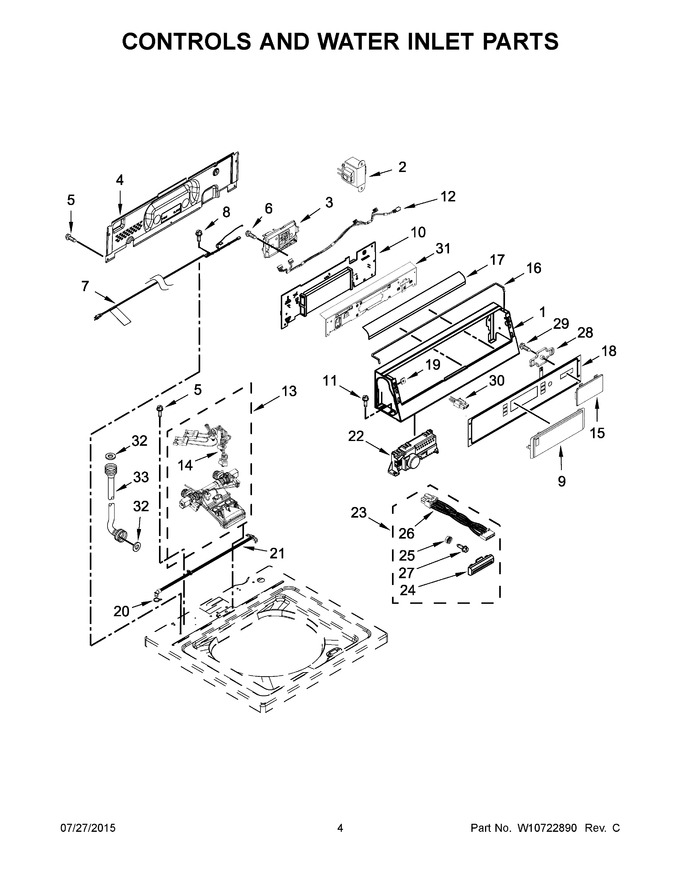

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11124005		Console   (Replaces: W10461095)				$ 214.58
2	WPW10131839		Transformer   (Replaces: W10131839)				$ 126.21
3	W10860435		Control Unit Assembly   (Replaces: W10721254)				$ 562.67
4	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
6	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
7	W10472992		Cord, Power		Appelez-nous	-
8	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
9	W11637765		Cover, Display   (Replaces: W10267645)				$ 62.63
10	WPW10647074		User Interface   (Replaces: W10647074)				$ 407.24
11	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
12	W10480949		Harness, Upper		Appelez-nous	-
13	WPW10486031		Inlet Assembly, Water   (Replaces: W10486031)			Immediately	$ 174.74
14	W10472990		Harness, Valve				$ 145.71
15	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
16	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
17	W10133515		Deflector Switch Assembly		Appelez-nous	-
18	W10461105		Fascia		Appelez-nous	-
19	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 7.29
20	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 201.83
21	WPW10461189		Assembly, Hose   (Replaces: W10461189)				$ 30.32
22	WPW10482833		Module, Electronic Release   (Replaces: W10482833)				$ 175.00
23	WPW10135415		Card Reader, Conversion Kit   (Replaces: W10135415)				$ 66.51
24	WPW10135415		Bezel   (Replaces: W10135415)				$ 66.51
24	WPW10131115		Bezel   (Replaces: W10131115)				$ 8.01
25	WPW10135415		Nut   (Replaces: W10135415)				$ 66.51
25	WPW10139046		Nut   (Replaces: W10139046)				$ 8.31
26	WPW10135415		Card Reader, Harness   (Replaces: W10135415)				$ 66.51
26	W10858740		Card Reader, Harness   (Replaces: W10133304)				$ 22.64
27	WPW10143462		Screw   (Replaces: W10143462)				$ 5.67
27	WPW10135415		Screw   (Replaces: W10135415)				$ 66.51
28	WPW10135415		Retainer, Card Reader Cover   (Replaces: W10135415)				$ 66.51
28	W11775266		Retainer, Card Reader Cover   (Replaces: W10137770)		Appelez-nous	-
29	3400618		Screw				$ 61.15
29	WPW10135415		Screw   (Replaces: W10135415)				$ 66.51
30	WPW10135415		Jumper, Switch Service/vault   (Replaces: W10135415)				$ 66.51
30	W11129439		Jumper, Switch Service/vault   (Replaces: W10133282)				$ 15.89
31	W10461069		Back Bracket, Control Panel		Appelez-nous	-
32	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 7.34
33	W10458855		Hose, Water Inlet (hot)		Appelez-nous	-
33A	W10458856		Hose, Water Inlet (cold)		Appelez-nous	-
