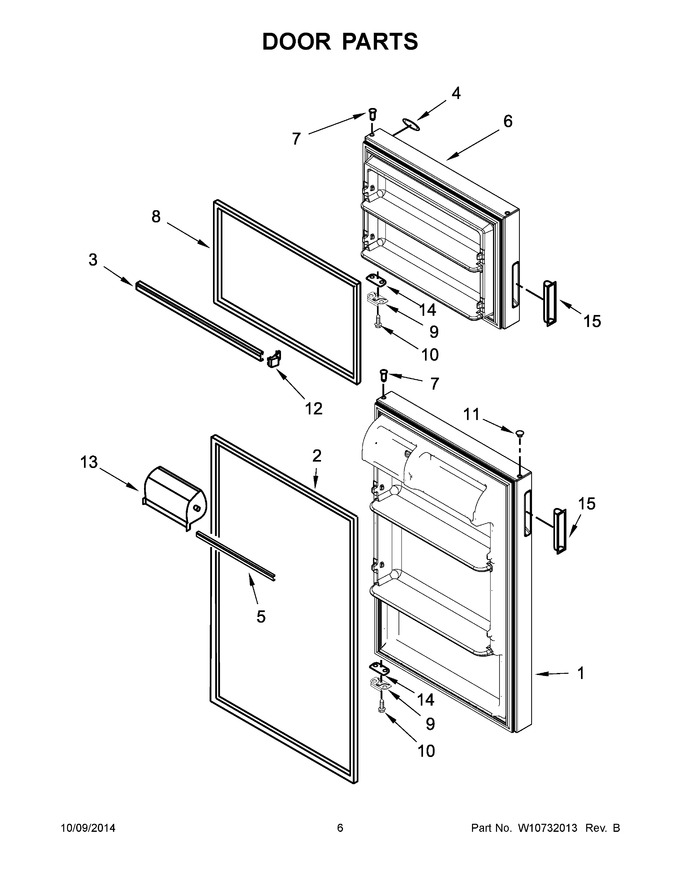

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10573330		Refrigerator Door (includes Illustration 2 & Door Handle) (white)   (Replaces: W10573330)				$ 653.82
2	2319266W		Door Gasket, Magnetic (white)   (Replaces: 2264729)				$ 310.33
3	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 108.51
4	W11428492		Badge, Amana   (Replaces: W10200425)				$ 75.21
5	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 114.61
6	LW10573333		Freezer Door (includes Illustration 8 & Door Handle) (white)   (Replaces: W10573333)				$ 617.96
7	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
8	WP2319263W		Door Gasket, Magnetic (white)   (Replaces: 2264726)			Immediately	$ 238.68
9	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
10	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
11	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
12	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
13	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 65.89
14	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.80
15	W10182940		Handle, Cup (white)				$ 65.17
11A	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 21.79
14A	2258681B		Shim, Door Stop (black)				$ 40.80
15A	W10174743		Handle, Cup (black)				$ 14.34
1A	LW10570563		Refrigerator Door (includes Illustration 2 & Door Handle) (black)   (Replaces: W10570563)		Appelez-nous	-
2A	2319266B		Door Gasket, Magnetic (black)   (Replaces: 2264725)				$ 338.86
6A	LW10573400		Freezer Door (includes Illustration 8 & Door Handle) (black)   (Replaces: W10573400)		Appelez-nous	-
8A	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)				$ 241.45

    View Diagram in Separate Window       Print Part List
