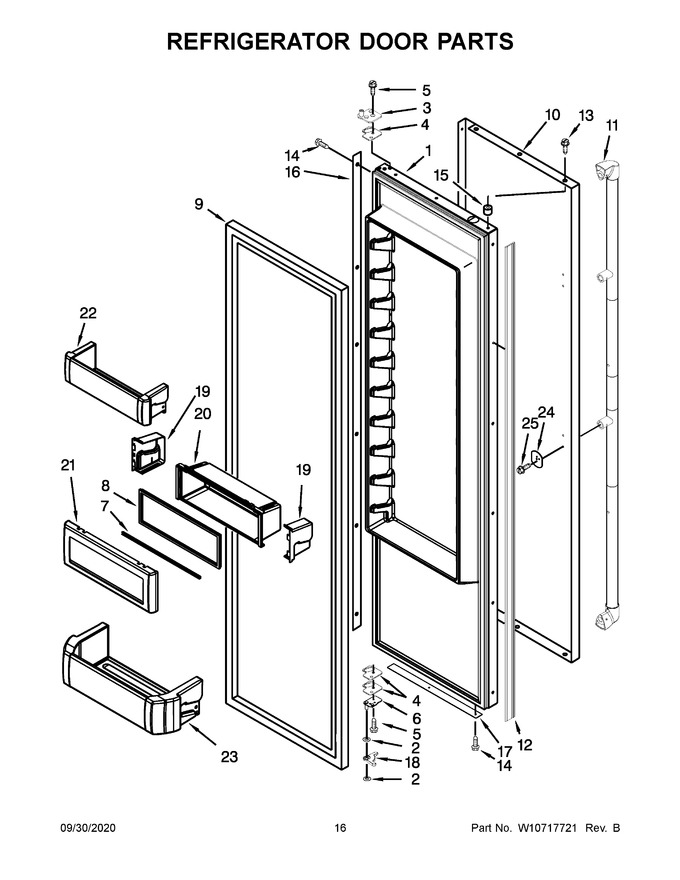

KSSC42QVS10 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10600342	Assembly, Refrigerator Door	Appelez-nous	-
2	WP2006346	Washer, Extension Arm (Replaces: 2006346)		Immediately	$ 10.58
3	W11673500	Assembly, Hinge (top) (Replaces: W10485980)		Immediately	$ 117.33
4	W11673500	Spacer, Door Hinge Bottom (Replaces: 2316804)		Immediately	$ 117.33
5	W11474472	Screw (Replaces: W10162602)		Immediately	$ 7.77
6	2302878	Assembly, Hinge (bottom)		Immediately	$ 81.91
7	W11448696	Rail, Lid (Replaces: 2222796)			$ 155.64
8	W11448696	Gasket, Utility Bin (Replaces: 2222982)			$ 155.64
9	WP2266902	Gasket, Door (Replaces: W10694211)			$ 297.27
10	W10523739	Skin, Door (stainless)	Appelez-nous	-
11	WP2316868	Handle, Door (stainless) (Replaces: 2316868)		Immediately	$ 253.29
12	2309060	Spacer, Handle Side Door	Appelez-nous	-
13	W10759522	Screw (stainless) (Replaces: 488568)			$ 7.42
14	WP8281250	Screw (stainless) (Replaces: 8281250)			$ 10.28
15	2005433	Spacer			$ 21.00
16	W10142296	Spacer, Hinge Side Door	Appelez-nous	-
17	2004934	Spacer, Door Skin Bottom	Appelez-nous	-
18	W11700297	Cover, Bottom Gap (Replaces: W10482554)		Immediately	$ 34.45
19	W10768112	Endcap, Utility Bin (right Hand)			$ 41.01
20	W11448696	Bin, Center Utility (Replaces: W10323036)			$ 155.64
21	W11553221	Door, Utility Bin (Replaces: 2257616)		Immediately	$ 62.68
22	W10323599	Bin, Shallow Door			$ 131.95
23	W10323747	Bin, Gallon Door			$ 130.82
24	W10127710	Plate, Handle Door		Immediately	$ 23.35
25	WP308544	Screw (Replaces: 308544)		Immediately	$ 7.47
19A	W10769395	Endcap, Utility Bin (left Hand)			$ 35.30
