01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Refrigerator Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

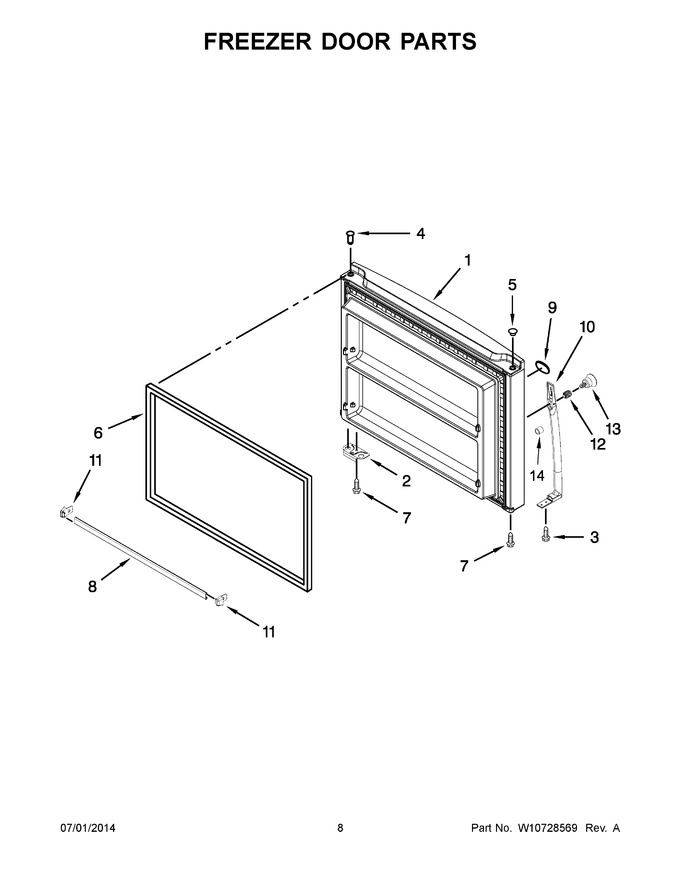

| 1 | W10406257 | Freezer Door (includes Illus. 4 & 6) (stainless) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
Immediately | $ 11.44 | ||||
| 5 | WP2254517 | Hole Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 6 | W11624958 | Door Gasket, Magnetic (grey) (Replaces: W10279559) |
|
$ 288.83 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 8 | W10469910 | Trim, Door |
|
$ 148.25 | |||||
| 9 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 10 | W11765172 | Handle (titanium Sparkle) (Replaces: W10498437) |
|
Immediately | $ 112.65 | ||||
| 11 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 11 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 12 | 690046 | Screw, Set |
|
- | |||||
| 13 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 14 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 14.50 |
