01 - Cover Sheet

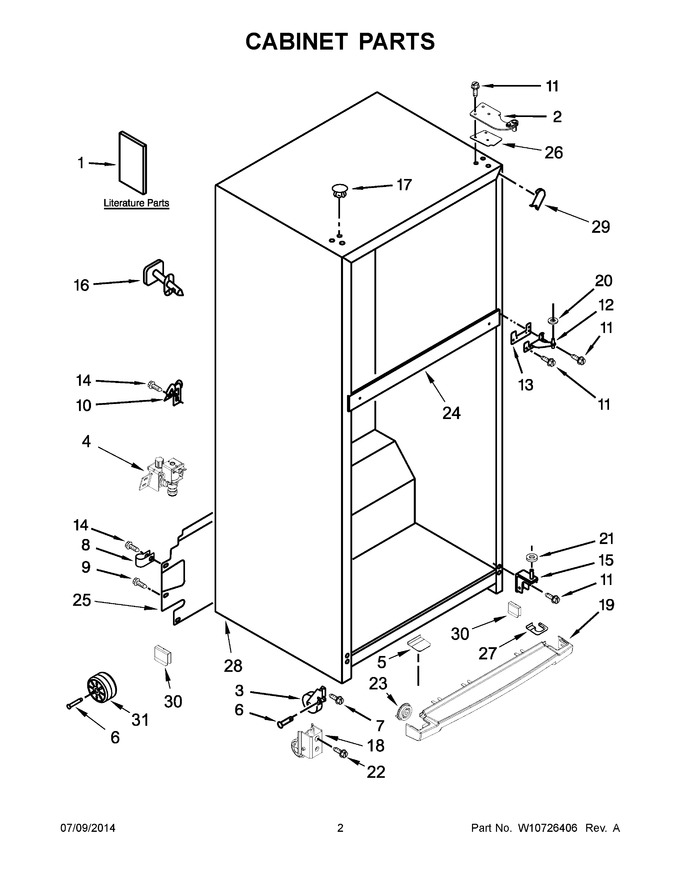

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Refrigerator Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10352352 | Energy Label |
|
- | |||||
| 1 | W10712371 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10551713 | Use And Care Guide |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 12.55 | |||||
| 3 | WP2166108 | Assembly, Roller (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | WPW10279909 | Valve, Inlet (Replaces: W10279909) |
|
$ 170.90 | |||||
| 5 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 76.88 | |||||
| 5 | W10353930 | Cover, Toe Grille (black) |
|
$ 76.81 | |||||
| 6 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 7 | W10850698 | Screw (Replaces: 3400517) |
|
$ 12.98 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 10 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 13 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 14 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 15 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 8.35 | ||||
| 16 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 17 | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 17.26 | |||||
| 17 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 18 | W10849386 | Assembly, Roller (Replaces: W10327136) |
|
$ 103.28 | |||||
| 19 | WPW10300129 | Grille (white) (Replaces: W10300129) |
|
$ 98.60 | |||||
| 19 | WPW10353939 | Grille (black) (Replaces: W10353939) |
|
$ 152.91 | |||||
| 20 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 21 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 22 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.95 | |||||
| 23 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| 24 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 25 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 96.14 | |||||
| 26 | W10883637 | Shim, Top Hinge (Replaces: W10338247) |
|
$ 14.36 | |||||
| 27 | W10381060 | Cover, Toe Grille (hinge Side) (black) |
|
$ 36.12 | |||||
| 27 | W10381059 | Cover, Toe Grille (hinge Side) (white) |
|
$ 78.81 | |||||
| 28 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 29 | WPW10283959 | Filler Wrapper (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 29 | W11252732 | Filler Wrapper (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 30 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 31 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 |
