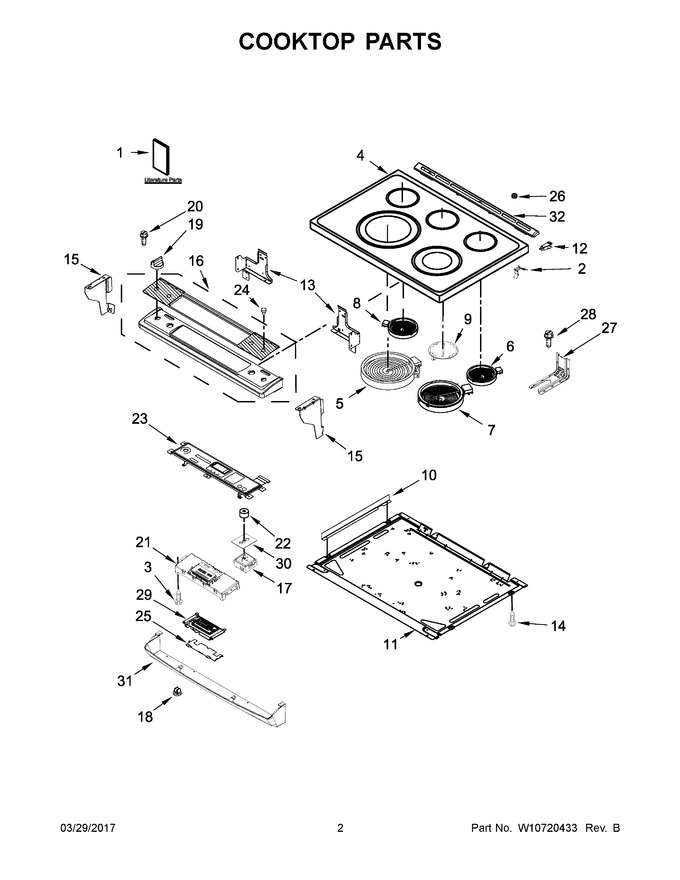

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665255 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10717748 | Cooktop (white) (Replaces: W10536285) |
|
Immediately | $ 515.98 | ||||
| 5 | WPW10275049 | Element 2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 312.78 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 8 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 201.13 | |||||
| 9 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 119.66 | |||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 70.12 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 163.45 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 16 | W10547071 | Console, Assembly (white) |
|
- | |||||
| 17 | W10857622 | Switch, Infinite (dual) (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 19 | W11677626 | Knob (white) (Replaces: W10569581) |
|
Immediately | $ 39.92 | ||||
| 20 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 21 | W11050557 | Control, Electronic (mrc2) (Replaces: W10759303) |
|
Immediately | $ 472.93 | ||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 26.84 | |||||
| 23 | W10728524 | Overlay, Active (white) (Replaces: W10665502) |
|
$ 305.19 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 26 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 28 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 29 | WPW10603098 | Assembly, Display (Replaces: W10603098) |
|
Immediately | $ 233.58 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 31 | W10570528 | Console, Lower Panel (white) |
|
$ 238.47 | |||||
| 32 | W10636527 | Vent, Trim Top (white) |
|
$ 226.20 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 13B | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 16A | W10728515 | Console, Assembly (black) (Replaces: W10547070) |
|
$ 300.14 | |||||
| 16B | W10728516 | Console, Assembly (stainless) (Replaces: W10547072) |
|
Immediately | $ 367.47 | ||||
| 17A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 17B | W11162115 | Switch, Infinite (right Front) (Replaces: W10600015) |
|
Immediately | $ 99.09 | ||||
| 17C | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 19A | W11568623 | Knob (black) (Replaces: W10569580) |
|
Immediately | $ 13.95 | ||||
| 19B | W10828837 | Knob (stainless) (Replaces: W10569582) |
|
Immediately | $ 69.66 | ||||
| 1A | W10844280 | Guide, Use & Care |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 23A | W10728532 | Overlay, Active (black) (Replaces: W10665501) |
|
Immediately | $ 304.96 | ||||
| 23B | W10728531 | Overlay, Active (stainless) (Replaces: W10145860) |
|
Immediately | $ 302.26 | ||||
| 31A | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 146.04 | ||||
| 31B | W10581493 | Console, Lower Panel (stainless) |
|
$ 126.41 | |||||
| 32A | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 4A | W10717749 | Cooktop (black) (Replaces: W10536300) |
|
$ 597.01 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 213.24 | ||||
| NI | W10580295 | Clip, Harness |
|
$ 164.25 | |||||
| NI | W10664316 | Clip, Harness |
|
$ 18.87 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580294 | Harness, Main |
|
$ 276.68 | |||||
| NI | W10580280 | Harness, Warm Zone |
|
$ 170.99 |
