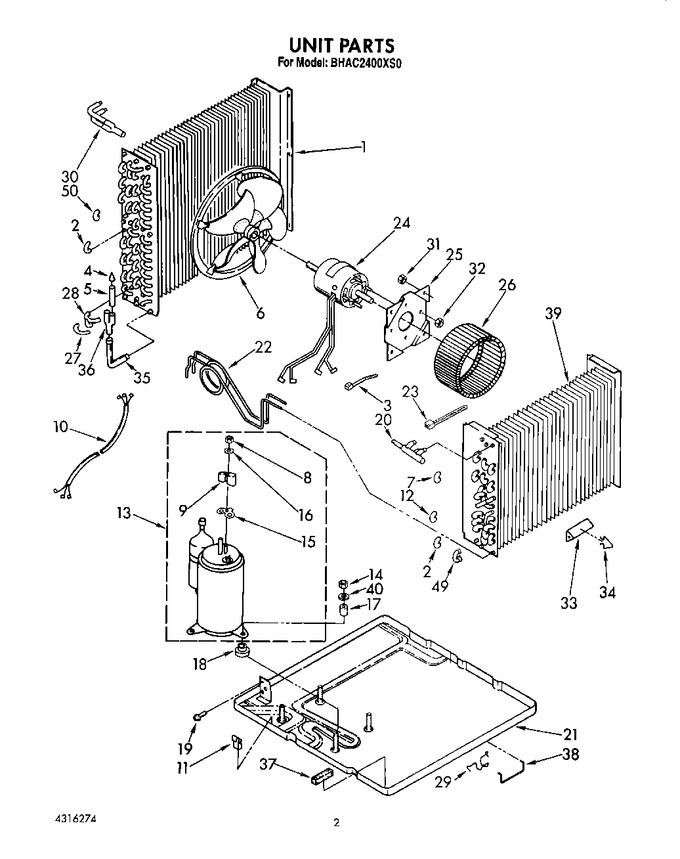

02 - Unit, Lit/optional
03 - Air Flow And Control
04 - Cabinet
05 - Optional
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1159712 | Condenser |
|
- | |||||
| 2 | 855199 | Bend, Return Condenser (6) Evaporator (7) |
|
- | |||||
| 3 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 1155598 | Tube, Outlet (includes No.4) |
|
- | |||||
| 6 | 997226 | Blade, Fan |
|
- | |||||
| 7 | 1155432 | Tube, Riser (2) |
|
- | |||||
| 8 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 9 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 10 | 484136 | Harness, Wiring |
|
- | |||||
| 11 | 642684 | Clamp, Tube (2) |
|
- | |||||
| 12 | 998682 | Bend, Return |
|
- | |||||
| 13 | 819231 | Compressor |
|
- | |||||
| 14 | 858121 | Locknut (4) |
|
- | |||||
| 15 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 16 | 950037 | Gasket, Nut |
|
- | |||||
| 17 | 950020 | Sleeve (3) |
|
- | |||||
| 18 | 1156009 | Grommet (3) |
|
- | |||||
| 19 | WP488729 | Screw, Sm No.8 X 1/2a (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 20 | 1155510 | Tube, Manifold |
|
- | |||||
| 21 | 1155548 | Base |
|
- | |||||
| 22 | 1155990 | Tube, Restrictor (3) (53.0`` Length) |
|
- | |||||
| 23 | WPW10339879 | Wire, Tie (Replaces: 612805) |
|
$ 7.47 | |||||
| 24 | 998409 | Motor, Fan |
|
- | |||||
| 25 | 998024 | Plate, Mounting |
|
- | |||||
| 26 | 1158443 | Wheel, Blower |
|
- | |||||
| 27 | 854624 | Bend, Return (32) |
|
- | |||||
| 28 | 953169 | Bend, Return (3-way) |
|
- | |||||
| 29 | 852272 | Clip, Cabinet Front Mtg. (3) |
|
- | |||||
| 30 | 1159713 | Tube, Flow Divider |
|
- | |||||
| 31 | 858122 | Locknut |
|
- | |||||
| 32 | WP488130 | Nut, 8-32 (Replaces: 488130) |
|
$ 6.59 | |||||
| 33 | 472046 | Anticipator |
|
- | |||||
| 34 | 472047 | Clip |
|
- | |||||
| 35 | 950814 | Tube, 90~ Bend |
|
- | |||||
| 36 | 947364 | Tube, Flow Divider |
|
- | |||||
| 37 | 1162509 | Seal |
|
- | |||||
| 38 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 39 | 1155435 | Evaporator |
|
- | |||||
| 40 | 1156176 | Washer, Flat (3) |
|
- | |||||
| 41 | 948130 | Bushing, Base To Condenser |
|
- | |||||
| 49 | 997669 | Bend, Return (16) |
|
- | |||||
| 50 | 856665 | Bend, Return |
|
- | |||||
| LIT1159930 | Guide, Use And Care |
|
- | ||||||
| LIT1157121 | Tech Sheet |
|
- | ||||||
| LIT1161909 | Instructions, Installation |
|
- | ||||||
| LIT4316274 | List, Repair Parts |
|
- | ||||||
| LIT950700 | Wiring Diagram |
|
- |
