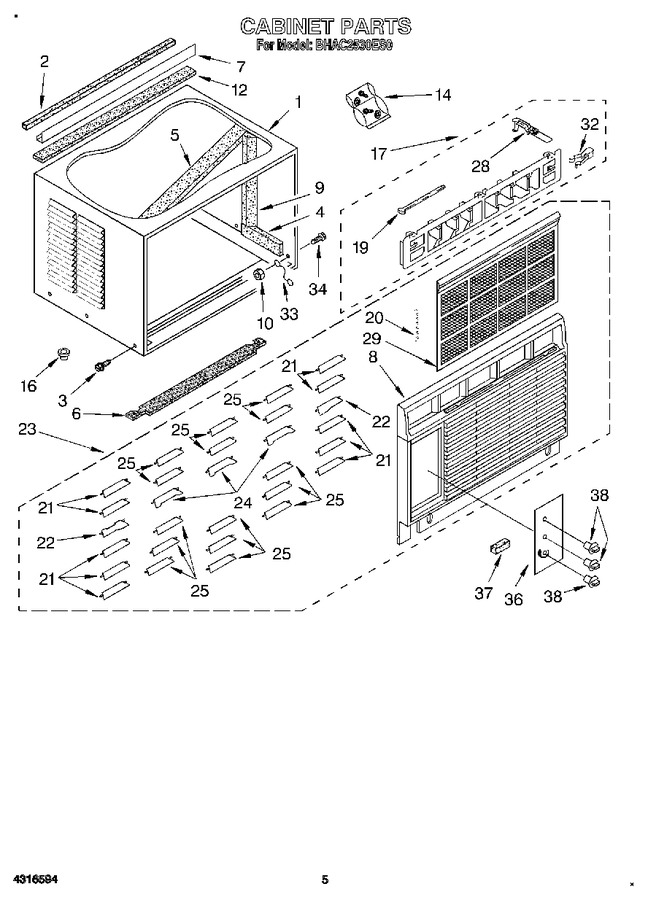

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1161335		Cabinet (includes Insulation)		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	1160818		Insulation, Cabinet Side (2)		Appelez-nous	-
5	1167203		Insulation, Cabinet (top)		Appelez-nous	-
6	1160768		Seal		Appelez-nous	-
7	644271		Angle, Top Mounting		Appelez-nous	-
8	1165012		Front, Cabinet		Appelez-nous	-
9	1162099		Insulation, Cabinet Side (2)		Appelez-nous	-
10	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
12	1163784		Seal, Top Mounting Angle		Appelez-nous	-
14	1166387		Bag, Accessory		Appelez-nous	-
16	997285		Cup, Condensate Drain		Appelez-nous	-
17	1162079		Louver, Vertical		Appelez-nous	-
19	1162077		Link, Vertical Louver (2)		Appelez-nous	-
20	1164167		Link, Horizontal Louver (5)		Appelez-nous	-
21	1165014		Louver, Horizontal (10)		Appelez-nous	-
22	1165013		Louver, Horizontal W/ Handle (2)		Appelez-nous	-
23	1165008		Front, Complete		Appelez-nous	-
24	1165015		Louver, Horizontal W/ Handles (3)		Appelez-nous	-
25	1165016		Louver, Horizontal (15)		Appelez-nous	-
28	1162078		Actuator, Louver		Appelez-nous	-
29	1165018		Filter		Appelez-nous	-
32	641484		Spring, Detent				$ 150.14
33	857022		Wire, Ground		Appelez-nous	-
34	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
36	1167104		Plate, Escutcheon		Appelez-nous	-
37	470036		Spacer, Escuthchon		Appelez-nous	-
38	1167955		Knobs, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
